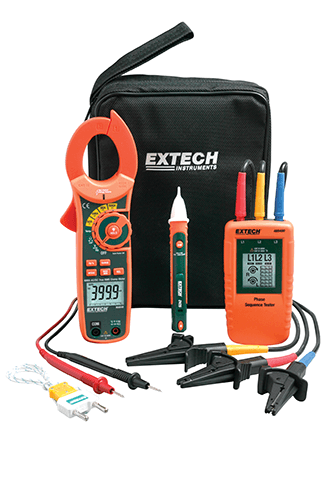

EXTECH MA640-K Clamp Meter Test Kit (600A; true RMS)

- Model MA640 — 600A True RMS 6000 count AC/DC Clamp-on

AC Current (True RMS): 60.00A, 600.0A /±2.8%

DC Current: 60.00A, 600.0A /±2.8%

AC Voltage (True RMS): 6.000V, 60.00V, 600.0V /±1.8%

DC Voltage: 600.0mV, 6.000V, 60.00V, 600.0V /0.1mV /±1.5%

Resistance: 600.0Ω, 6.000kΩ, 60.00kΩ, 600.0kΩ, 6.000MΩ, 60.00MΩ /±1.0% Frequency 10Hz to 10kHz /±3.0%

Capacitance 40.00nF, 400.0nF, 4.000μF, 40.00μF, 400.0μF, 4000μF /±3.0%

Temperature: 20 to 760°C

Duty Cycle 0.5 to 99.0% /±1.2%

Diode Yes

Continuity Yes

- Model 480400 — 3-Phase Rotation Tester with multiline LCD

Range voltage 40 to 600VAC

Range frequency 15 to 400Hz

- Model DV25 — Dual Range AC Voltage Detector

Range 100 to 1000VAC

Complete with test leads, general purpose Type K bead wire temperature probe, 9V battery and carrying case
