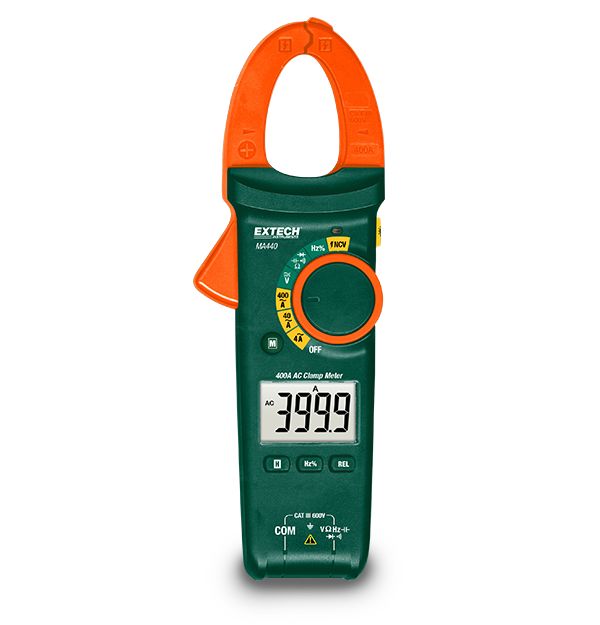

EXTECH MA440 Clamp Meter (AC: 400.0A; DC: 600V, True RMS)

GENERAL SPECIFICATIONS

AC Current: 400.0A

AC Current Basic Accuracy: ±2.0%

AC Current Max Resolution: 1mA

AC Voltage: 600V

AC Voltage Basic Accuracy: ±1.2%

AC Voltage Max Resolution: 1mV

Capacitance: 100µF

Capacitance Max Resolution: 0.01nF

Continuity: Yes

DC Voltage: 600V

DC Voltage Basic Accuracy: ±0.8%

DC Voltage Max Resolution: 0.1mV

Diode Test: Yes

Frequency: 1MHz

Frequency Max Resolution: 0.01Hz

Jaw Size: 1.2" (30mm), conductors up to 500MCM

Non-Contact Voltage (NCV) Detector: 100 to 600VAC

Resistance: 40MΩ

Resistance Max Resolution: 0.1Ω

True RMS: Yes

ADDITIONAL DETAILS:

Certifications: CE, ETL

Dimensions: 9 × 3 × 1.6" (228 × 77 × 41mm)

Power: 3 × AAA (1.5V) batteries

Safety Category: CATIII - 600V

Weight: 9.3oz (265g)
