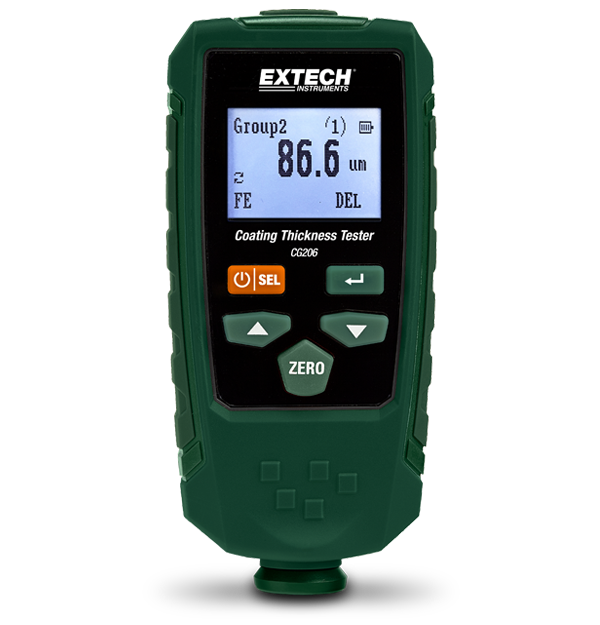

EXTECH CG206 Coating Thickness Tester

GENERAL SPECIFICATIONS

Coating Thickness (Ferrous): 0 to 1350µm (0 to 53mils)

Coating Thickness (Ferrous) Basic Accuracy: ±2.5%

Coating Thickness (Ferrous) Max Resolution: 0.1µm (0.004mils)

Coating Thickness (Non-Ferrous): 0 to 1350µm (0 to 53mils)

Coating Thickness (Non-Ferrous) Basic Accuracy: ±2.5%

Coating Thickness (Non-Ferrous) Max Resolution: 0.1µm (0.004mils)

Min Curvature Radius (Ferrous): 1.5mm (59.06mils)

Min Curvature Radius (Non-Ferrous): 3mm (118.1mils)

Min Diameter (Ferrous): 7mm (275.6mils)

Min Diameter (Non-Ferrous): 5mm (196.9mils)

Min Thickness (Ferrous): 0.5mm (19.69mils)

Min Thickness (Non-Ferrous): 0.3mm (11.81mils)

Working Principle (Ferrous): Magnetic Induction

Working Principle (Non-Ferrous): Eddy Current

ADDITIONAL DETAILS:

Certifications: CE

Dimensions: 4.5 × 2.1 × 1.1" (113.5 × 54 × 27mm)

Power: 2 × AAA (1.5V) batteries

Weight: 3.9oz (110g)
