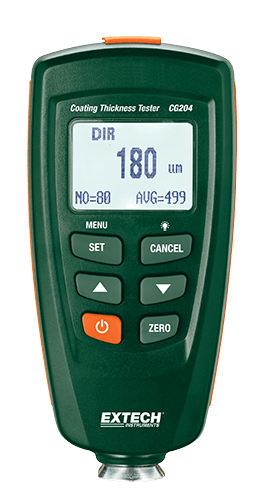

EXTECH CG204 Coating Thickness Tester (magnetic, non-magnetic)

Sensor Probe

Ferrous

Non-Ferrous

Working Principle

Magnetic Induction

Eddy Current

Measuring Range

0 to 1250μm

0 to 49mils

0 to 1250μm

0 to 49mils

Basic Accuracy

±3%

±3%

Resolution

0.1μm (0.004mils)

0.1μm (0.004mils)

Minimum Curvature Radius

1.5mm (59.06mils)

3mm (118.1mils)

Minimum Diameter

7mm (275.6mils)

5mm (196.9mils)

Minimum Thickness

0.5mm (19.69mils)

0.3mm (11.81mils)

Dimensions

4.7 x 2.4 x 1.25" (120 x 62 x 32mm)

Weight

6.17oz (175g)
