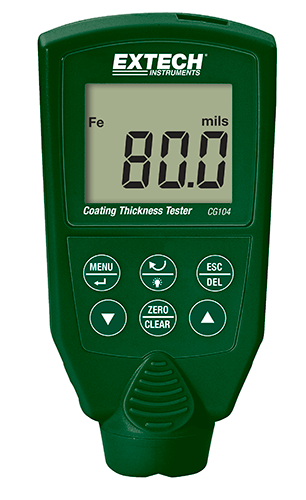

EXTECH CG104 Coating Thickness Tester

Type magnetic measurements
- Measurement principle: Magnetic induction
- Measuring range: 0 to 2000μm
- Accuracy:
± 4 digits (0 to 7.8mils); ± 10 digits (o to 199μm)
± 3% (7.9 to 39.0mils); ± 3% (200μm to 1000μm)
± 5% (39.1 to 80.0mils); ± 5% (1001μm to 2000μm)
Measuring non-magnetic type:
- The principle of measurement: Eddy current
- Measuring range: 0 to 1000μm
- Accuracy:
± 4 digits (0 to 7.8mils); ± 10digits (0 to 199μm);
± 3% (7.9 to 39.0mils); ± 3% (200μm to 1000μm);
Dimensions: 105x55x27mm
Weight: 80 g
Accessories: main machine, 2 AAA batteries, calibration standard, wrist strap, soft case
