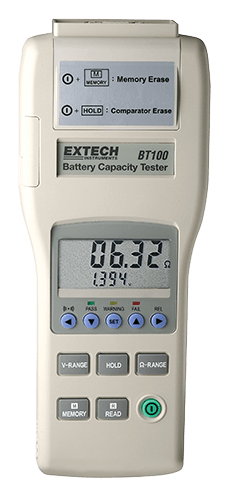

EXTECH BT100 Battery Capacity Tester

• Built-in datalogger stores up to 999 tests

• Simultaneously measures DC Voltage

and AC Milliohms

• Auto power off

• Includes Windows® 95/98/NT/2000/ME/XP

compatible software for downloading

readings to a PC

Specifications Range Resolution Basic Accuracy

Resistance

- 40mΩ, 400mΩ, /10μΩ, 100μΩ / ±(1% reading ± 8d)

- 4Ω, 40Ω /1mΩ, 10mΩ / ±(1% reading ± 8d)

Voltage

4V, 40V / 1mV, 10mV / ±(0.1% reading ±6d)

Max Input Voltage: 50VDC

Power: 6 AAA batteries

Battery life: 7 hours

Dimensions: 9.75 x 4 x 1.75" (250 x 100 x 45 mm)

Weight: 17.5oz (500g)
