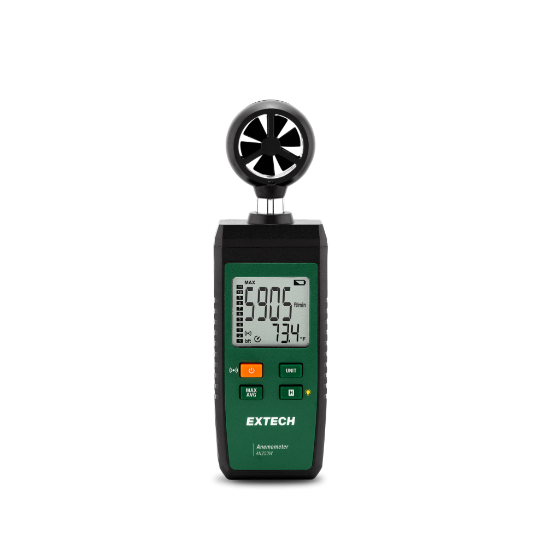

EXTECH AN250W Anemometer

GENERAL SPECIFICATIONS

Air Velocity (ft/min): 295.2 to 5905 ft/min

Air Velocity (ft/min) Basic Accuracy: ±5% full scale

Air Velocity (ft/min) Max Resolution: 1 ft/min

Air Velocity (km/h): 5.4 to 108 km/h

Air Velocity (km/h) Basic Accuracy: ±5% full scale

Air Velocity (km/h) Max Resolution: 0.1 km/h

Air Velocity (knots): 2.9 to 58 knots

Air Velocity (knots) Basic Accuracy: ±5% full scale

Air Velocity (knots) Max Resolution: 0.1 knots

Air Velocity (m/s): 1.5 to 30 m/s

Air Velocity (m/s) Basic Accuracy: ±5% full scale

Air Velocity (m/s) Max Resolution: 0.1 m/s

Air Velocity (mph): 3.3 to 67 mph

Air Velocity (mph) Basic Accuracy: ±5% full scale

Air Velocity (mph) Max Resolution: 0.1 mph

Beaufort Wind Force: 0 to 12

Beaufort Wind Force Basic Accuracy: ±1

Beaufort Wind Force Max Resolution: 1

Sampling Rate: 0.5 sec

Temperature (Air): 14 to 122°F (-10 to 50°C)

Temperature (Air) Basic Accuracy: ±4°F (±2°C)

Temperature (Air) Max Resolution: 0.2°F (0.1°C)

Wireless Connectivity: Bluetooth® (via ExView iOS/Android mobile app)

Wireless Transmission Range: up to 90 m line of sight

ADDITIONAL DETAILS

Certifications: CE, FCC, UKCA

Dimensions: 6.9 × 2.1 × 1.1 in (176 × 53 × 28 mm)

Operating Conditions: 32 to 104°F (0 to 40°C), ≤80% RH

Power: 3 × AAA (1.5V) batteries

Weight: 3.2 oz (90 g)
