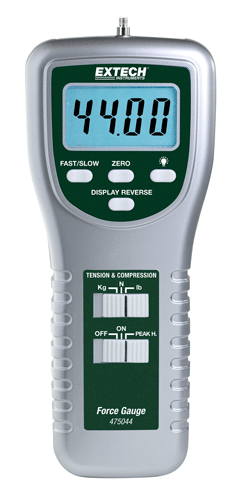

EXTECH 475044 High Capacity Force Gauge (20kg)

Range: 44 lbs, 20kg, 196 Newtons

Accuracy (23°C): ±(0.5% + 2 digit)

Resolution: 0.01lbs, 0.01kg, 0.05 Newtons

Overload capacity: 30kg

Display: 5 digits, 0.4" (10mm) LCD display

Update Rate: Fast mode 0.2 secs; Slow mode 0.6 secs.

Full scale deflection: 2.00mm

Transducer type: Load cell

Peak Hold: Freezes Max reading on display

Power Supply: Six 1.5V AA (UM-3) batteries or DC 9V adaptor (not included)

Weight: 1.2 lbs (551g)

Size: 8.9 x 3.3 x 1.5" (227 x 83 x 39mm)

Complete with hook adaptor for tension, compression adaptors (fl at, cone and chisel head), 5" extension rod, 6 AA batteries and carrying case.
