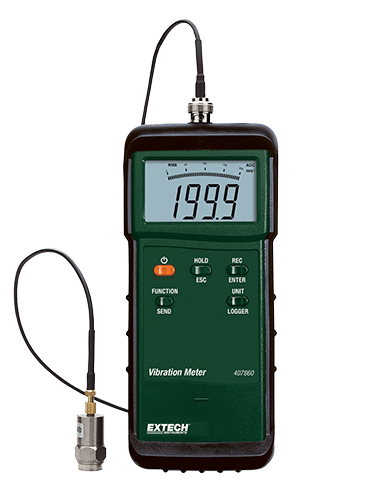

EXTECH 407860 Heavy Duty Vibration Meter

Ranges:

Acceleration (peak): 656ft/s2 (200m/s2),

Velocity (peak): 7.87in/s (200mm/s),

Displacement (peak-to-peak): 0.078in (2mm)

• Remote vibration sensor with magnetic adapter

on 39"(1m) cable

• Wide frequency range of 10Hz to 1kHz

• Resolution to 2ft/s2 (0.5m/s2), 0.02in/s (0.5mm/s), and 0.001in

(0.005)mm

• Basic accuracy of ±(5% + 2 digits)

• RMS or Peak Value measurement modes

• Manual/Auto store/recall up to 500 readings

• Optional Windows® 95/98/NT/2000/XP compatible software

allows captured readings to be downloaded to your PC

for further analysis

• Data Hold freezes the reading in the display

• Auto shut-off saves battery life

• 9V battery power or optional AC adaptor

• Dimensions: 7.1 x 2.8 x 1.3" (180 x 72 x 32mm);

Weight with Probe: 0.87lbs (395g)

• Complete with remote sensor, magnetic mount, 9V battery,

protective rubber holster with stand, and hard carrying case
