EXTECH 382100 3-Phase Power Analyzer/Datalogger (1200A)

ACV (True rms): 600.0V /±0.5%

ACA: 1200A/ ±0.5%

Active Power (MW): 9.999MW /±1.0%/

Apparent Power (MVA): 9.999MVA /±1.0%

Reactive Power (MVAR) 9.999MVAR /±1.0%

Power Factor: 0.00 to 1.00 /±0.04

FrequencyRange: 45Hz to 65Hz /±0.1Hz

Phase: -180° to +180.0° /±1°

Active Power Energy (MWh): 0.0kWh to 9.999MWHr /±2.0%

Apparent Power Energy (MVAh): 0.0KVAh to 9.999MVAh /±2.0%

Reactive Power Energy (MVARh): 0.0kVARh to 9.999MVARh /±2.0%

Datalogging: 60,000 readings (2GB SD memory Card)

Dimensions: 8.9 x 2.5 x 1.3" (225 x 125 x 64mm)

Weight Meter: 2.3lbs (1049g); Clamp: 1.2lbs (522g)

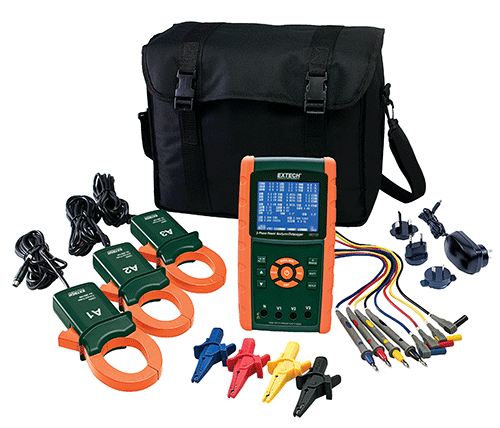

Complete with 3 current clamps, 4 voltage leads with alligator clips, 8 AA batteries, SD memory card, Universal AC adaptor (100 to 240V), and case
