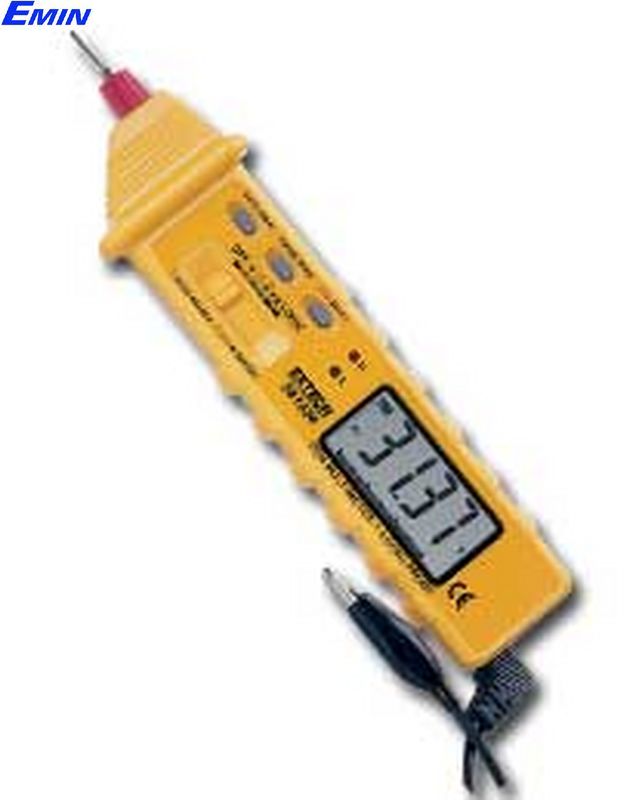

Extech 381626 Pen MultiMeter with Logic Test

DC Voltage: 300mV, 3, 30, 300, 500V/max 100µV/±1.0%

AC Voltage: 3, 30, 300, 500V/max 1mV/±1.5%

DC Current:30, 300mA/max 10µA/±1.5%

AC Current:30, 300mA/max 10µA / ±2.0%

Resistance(Ω):300, 3k, 30k, 300kΩ/max 0.1Ω/±1.5%

3MΩ/max 1kΩ/±2.0%

30MΩ/max 10kΩ /±3.0%

Diode TestForward voltage drop

Continuity Test:Audible beep <20 ohms="" span="">

Logic Test High/Low LED and LCD display indicate CMOS/TTL threshold level

Power supply: Two 1.5V AAA batteries

Dimensions: 1x7.5x1.9" (26x191x40mm)

Weight: 3.9oz. (120g)

Complete with extra fuses and test lead with alligator clip

Manufacturer: Extech USA

Datasheet
