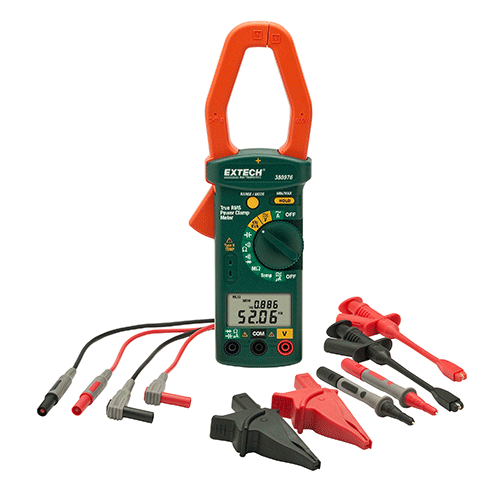

Extech 380976-K Single Phase/Three Phase 1000A AC Power Clamp Meter (1000A, True RMS)

True Power (W): 600kW / 10W /±5%

Apparent Power(kVA): 600kVA / 100VA / ±2%

Reactive Power (kVAR) 600kVAR/10VAR /±5%

Horsepower (HP) 800HP/0.01HP/ ±5%

Phase Angle (f): -60 to +60° / 0.1° /±6°

AC Current: (Trms): 1000A / 10mA /±2%

uA Current (AC+DC) (Trms): 1000μA / 10nA /±1%

AC/DC Voltage: (Trms): 600V / 0.1mV /±1%

Resistance (Ω): 1000kΩ / 0.1Ω /±1%

Resistance (MΩ): 100MΩ / 1kΩ /±5%

Capacitance: 7000μF / 1nF /±1.5%

Frequency: 40Hz to 1kHz / 0.1Hz/ ±0.5%

Temperature (Type K): -58 to 1000°F / 0.1°F /±1%

-50 to 900°C / 0.1°C /±1%

Dimensions: 9 x 3 x 1.6" (228 x 76 x 39mm)

Weight: 16.4oz (465g

Complete with test lead kit, general purpose Type K thermocouple probe, carrying case, and 9V battery
