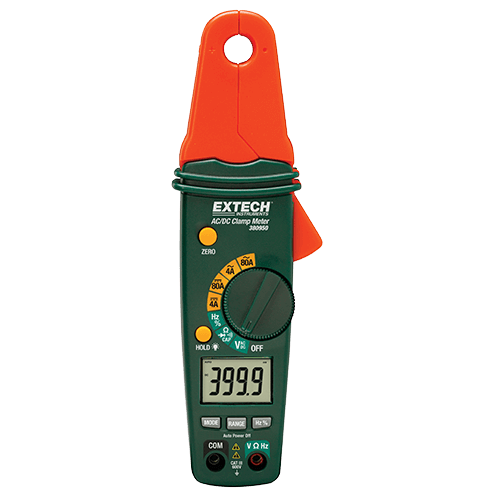

EXTECH 380950 Mini AC/DC Clamp Meter (80A)

Display counts: 4000 count LCD

Jaw size/Cable size: 0.5" (12mm); 3/0 AWG

AC Current: Range: 4A, 80A

Resolution: 1mA

Accuracy (%rdg+digits): ±(2.5% + 5d)

DC Current: Range: 4A, 80A

Resolution: 1mA

Accuracy (%rdg+digits): ±(2.5% + 4d)

AC Voltage: Range: 400mV - 600V

Resolution: 0.1mV

Accuracy (%rdg+digits): ±(2.0% + 4d)

DC Voltage: Range: 400mV - 600V

Resolution: 0.1mV

Accuracy (%rdg+digits): ±(1.5% + 3d)

Resistance: Range: 400Ω - 40MΩ

Resolution: 0.1Ω

Accuracy (%rdg+digits): ±(1.5% + 2d)

Frequency: Range: 5Hz - 10MHz

Resolution: 0.001Hz

Accuracy (%rdg+digits): ±(1.2% + 3d)

Duty Cycle: Range: 5 - 99.9%

Resolution: 0.1%

Accuracy (%rdg+digits): ±(1.2% + 3d)

Dimension/Weight: 8.3x2.8x1.5" (210x70x37mm)/7oz (200g)
