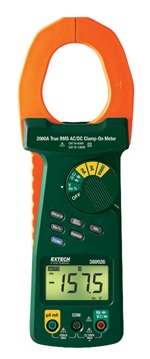

EXTECH 380926 True RMS AC/DC Clamp Meter (AC/DC 2000A)

True RMS

DC/AC Current (Clamp): 400A, 2000A /±(2% + 5d)

DC/AC Current (DMM): 400μA, 4000μA, 40mA, 400mA /±(1.2% + 5d)

DC Voltage: 400mV, 4.0V, 40V, 400V, 1000V /±(1% + 2d)

AC Voltage: 4V, 40V, 400V, 1000V /±(1.2% + 5d)

Capacitance: 50nF, 500nF, 5.0μF, 50μF 10pF /±(3% + 5d)

Resistance: 400Ω, 4.0kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ /±(1% + 5d)

Frequency: 5Hz, 50Hz, 500Hz, 5kHz, 50kHz, 100kHz /±(1% + 5d)

Duty Cycle: 1% to 99% /±(1% + 5d)

Diode Check: yes

Continuity: yes

Dimensions/Weight: 10 x 2.9 x 1.5" (255x73x38mm) / 14oz. (380g)

Complete with test leads and 9V battery
