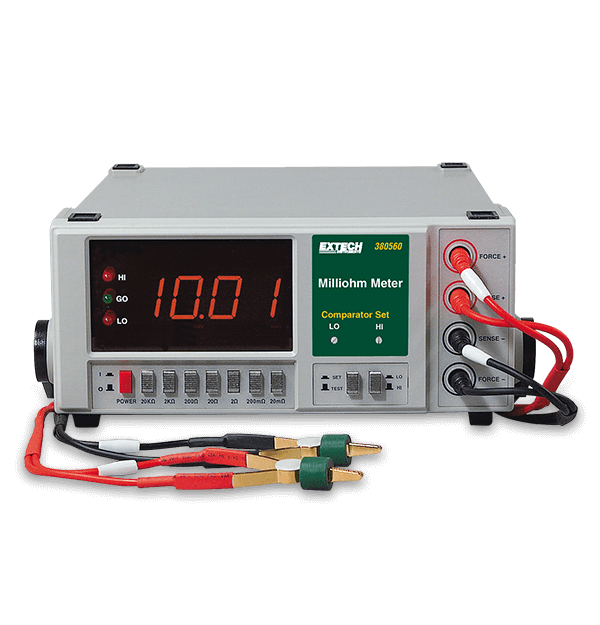

EXTECH 380560 High Resolution Precision Milliohm Meter (110VAC)

Resistance:

- Range: 20m; Resolution: 0.01m; Current: 1A; Accuracy (%rdg): ± (0.2% + 6d)

- Range: 200m; Resolution: 0.1m; Current: 1A; Accuracy (%rdg): ± (0.2% + 4d)

- Range: 2; Resolution: 0.001; Current: 100mA; Accuracy (%rdg): ± (0.2% + 4d)

- Range: 20; Resolution: 0.01 ; Current: 10mA ; Accuracy (%rdg): ± (0.2% + 4d)

- Range: 200; Resolution: 0.1 ; Current: 1mA ; Accuracy (%rdg): ± (0.2% + 4d)

- Range: 2k; Resolution: 0.001k; Current: 100μA; Accuracy (%rdg): ± (0.2% + 4d)

- Range: 20k; Resolution: 0.1k; Current: 10μA; Accuracy (%rdg): ± (0.2% + 4d)

Power: 110VAC, 60Hz hoặc 220VAC 50Hz

Dimensions/Weight: 11 x 8.3 x 3.5" (280 x 210 x 90mm)/ 4.85lb (2.2kg)
