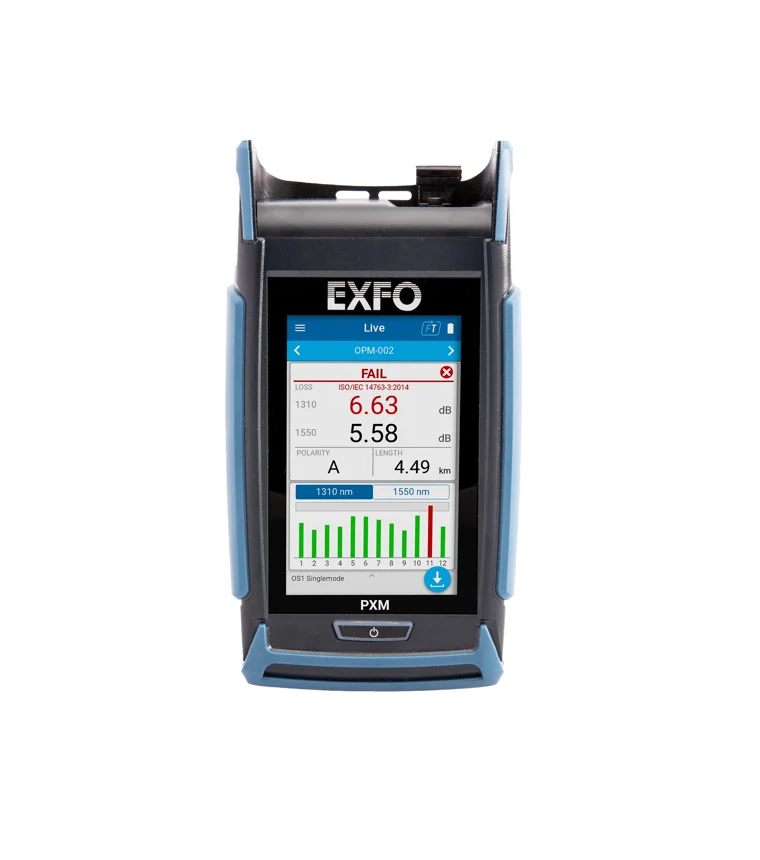

EXFO PXM MPO Optical Loss Test

PXM POWER METER SPECIFICATIONS

Optical connector: Contactless MPO-12 male (pinned) supporting both APC and UPC. Connector with protective shutter.

Detector type: InGaAs

Power measurement range (dBm): 5 to –45

Power uncertainty (dB) : ±0.35

Linearity (dB) : ±0.1

Display resolution (dB): 0.01

Wavelength measurement range (nm): 850 to 1550

Calibrated wavelengths (nm): 850, 1300, 1310, 1550

Tone detection: 270 Hz, 330 Hz, 1 kHz, 2 kHz

Auto-wavelength recognition and switching: Yes

Length measurement: Up to 25 km depending on conditions with single mode and 1 km with multimode

Warm up time (s): 0

Storage capacity: 10,000 measurements at two wavelengths
