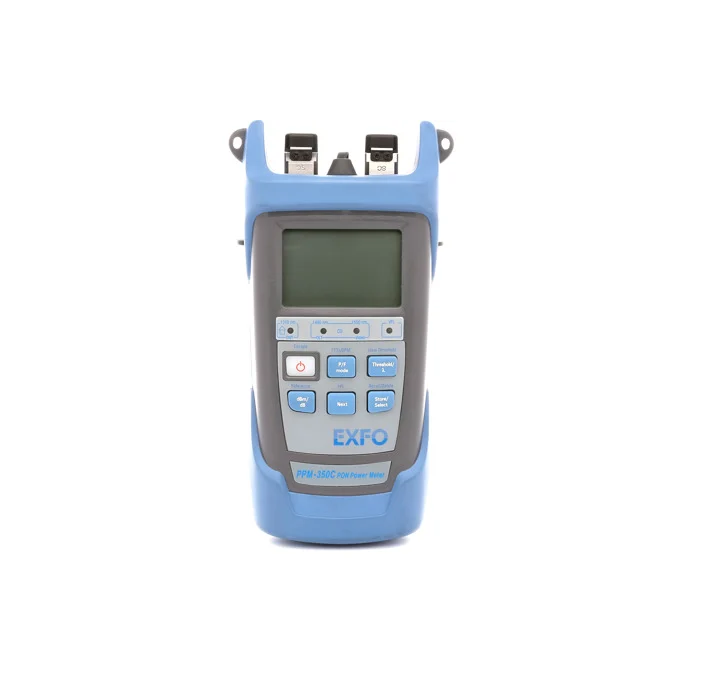

EXFO PPM-350C PON power meter

FTTx MODE

Power measurement range—pass zone for continuous data stream (dBm):

1310 nm: 8 to –40

1490 nm: 12 to –40

1550 nm: 25 to –40

Burst measurement capability: CO to ONT

Burst measurement range b (dBm): 1310 nm: 8 to –30

ORL e (dB): 1550 nm: 55

Pass-through insertion loss b (dB): 1.5

Spectral passband (nm) :

1310 nm: 1260 to 1360

1490 nm: 1480 to 1500

1550 nm: 1539 to 1565

Power uncertainty b, c, d (dB): 0.5

Calibrated wavelengths (nm): 1310/1490/1550

Threshold sets: 10 configurable threshold sets with threshold naming

OPM MODE (BROADBAND CW)

Power measurement range (dBm)

1310 nm: 25 to –40

1490 nm: 25 to –40

1550 nm: 25 to –40

ORL e (dB): 1550 nm: 55

Power uncertainty b, c, d (dB): 0.5

Calibrated wavelengths (nm): 1310/1490/1550

GENERAL SPECIFICATIONS

Size (H x W x D): 195 mm x 100 mm x 57 mm (7 11/16 in x 4 in x 2 ¼ in)

Weight: 0.4 kg (0.9 lb)

Temperature

Operating: –10 °C to 50 °C (14 °F to 122 °F)

Storage: –40 °C to 70 °C (–40 °F to 158 °F)

Relative humidity: 0% to 95% non-condensing

Autonomy b (hours): FTTx mode (burst): 35; OPM mode (CW): 80

Number of ports: 2
