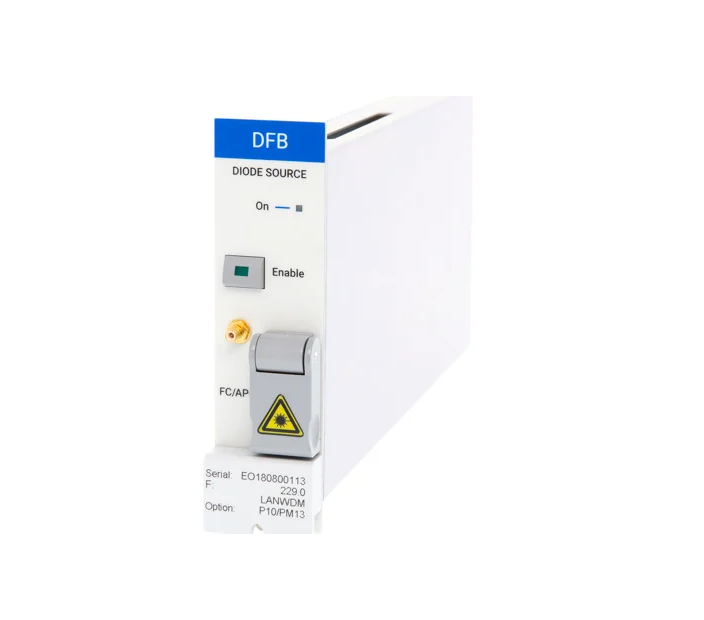

EXFO OSICS DFB LANWDM-SMF Distributed Feedback Laser

Models:

Channel 1: 1309.14 nm / 229.0 THz

Channel 2: 1304.58 nm / 229.8 THz

Channel 3: 1300.05 nm / 230.6 THz

Channel 4: 1295.56 nm / 231.4 THz

Wavelength

Channel center : Grid matched

Tuning range (nm) : 1.6 (1.8 typical)

Accuracy (nm): ±0.03

Stability over 1 hour (nm) : ±0.005

Stability over 24 hours (nm) : ±0.005 typical

Power

Maximum (mW): 10

Stability over 1 hour (dB): ±0.01

Stability over 24 hours (dB): ±0.01 typical

Optical isolation (dB): > 30

Relative intensity noise (RIN) (dB/Hz) : < –130

Spectrum

Laser line width (MHz): < 10

SMSR (dB): > 30 (40 typical)

Modulations

TTL: Internal: 1 Hz to 890 kHz; External: 16 Hz to 890 kHz

Analog (external/front panel): 150 Hz to 150 MHz

Stimulated brillouin scattering (SBS) suppression (internal)

+ Waveform: Sine

+ Frequency range (kHz): 10 to 100

+ Modulation depth (%): 0 to 15

Interfaces on module front panel

Enable key with status LED: Power up laser

Optical fiber: SMF

Fiber alignment to connector key: n/a

Polarization extinction ratio (PER) (dB): n/a

Optical connector: FC/APC narrow key

Electrical connector: Coaxial SMB - 50 Ω

Others

Laser safety: Class 1 M

Dimensions (W x H x D): 35 mm x 128 mm x 230 mm (1 3/8 in x 5 in x 9 in)

Weight: 1.1 kg (2.43 lb)
