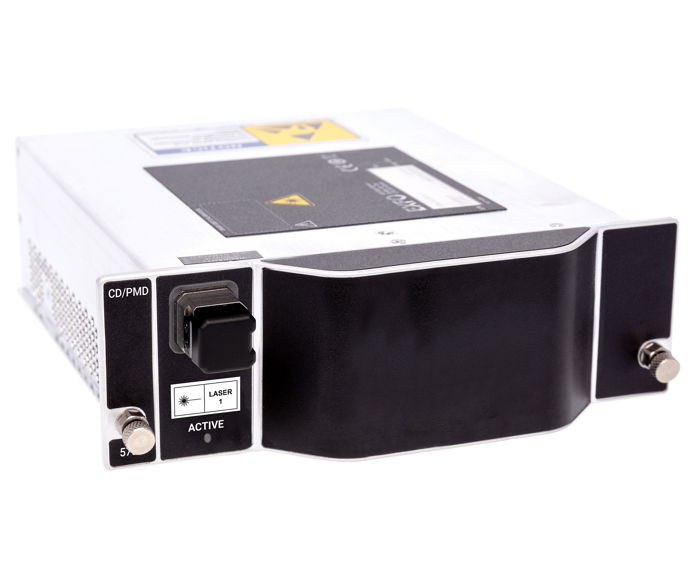

EXFO FTBx-570 Single-ended CD/PMD analyzer

SPECIFICATIONS

Measured wavelength range (nm):  SCL-band: 1475 to 1626;  O-band : 1310 ± 1

Dynamic range (dB): SCL-band: 30 (37 with reflector)

Distance uncertainty (km): ±(0.01 + 1 % × distance)

Test time (s) : 25

Link length

+ Range (km) : 1 to 240

+ Distance uncertainty (km): ±(0.01 + 1 % × distance)

CD

+ CD uncertainty (ps/nm): ± 2.5

+ Zero dispersion wavelength in SCL-band (nm) for G.653, G.655.C, G.655.D: ± 1.5

PMD

PMD display range (ps): 0.1 to 35

PMD uncertainty (ps): ±(0.2 + 5 % × PMD)

GENERAL SPECIFICATIONS

Size (H × W × D): 51 mm × 159 mm × 185 mm (2 in × 6 1 /4 in × 7 5 /16 in)

Weight: 1.4 kg (3.1 lb)

Temperature Operating:

Storage:

0 °C to 50 °C (32 °F to 122 °F)

–40 °C to 50 °C (–40 °F to 122 °F)

Relative humidity: 0 % to 95 % non-condensing
