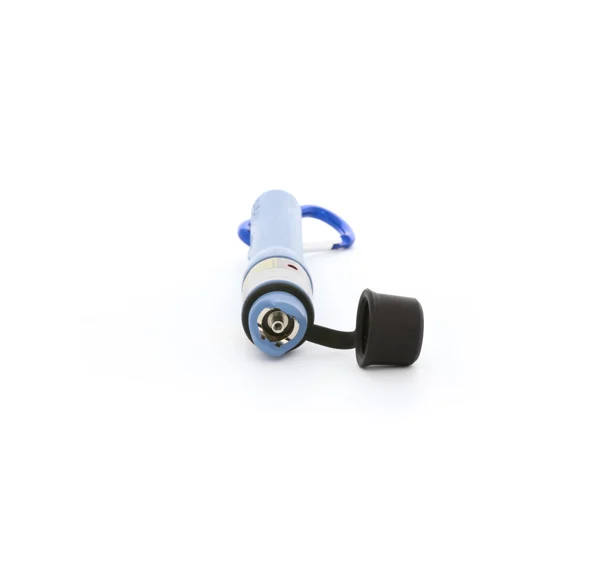

EXFO FLS-240 Visual fault locator (630 to 645 nm)

SPECIFICATIONS a

Operation (Hz): 2 to 4

Wavelength (nm): 630 to 645

Emitter type: Laser

Power output b (typical) (mW): 0.8

Distance range c (typical) (km): 5

Operation mode: Pulsed and CW

GENERAL SPECIFICATIONS

Power supply: 2 AAA alkaline batteries

Laser class: 2M

Battery life d (h) : CW: 35; Pulsed: 50

Length: 17.5 cm (6 7/8 in)

Maximum diameter 2.5 cm (1 in)

Weight Without batteries: 80 g (4.8 oz)

With batteries: 120 g (6.3 oz)

Temperature:

Operating: —10 °C to 50 °C (14 °F to 122 °F)

Storage: —30 °C to 60 °C (—22 °F to 140 °F)
