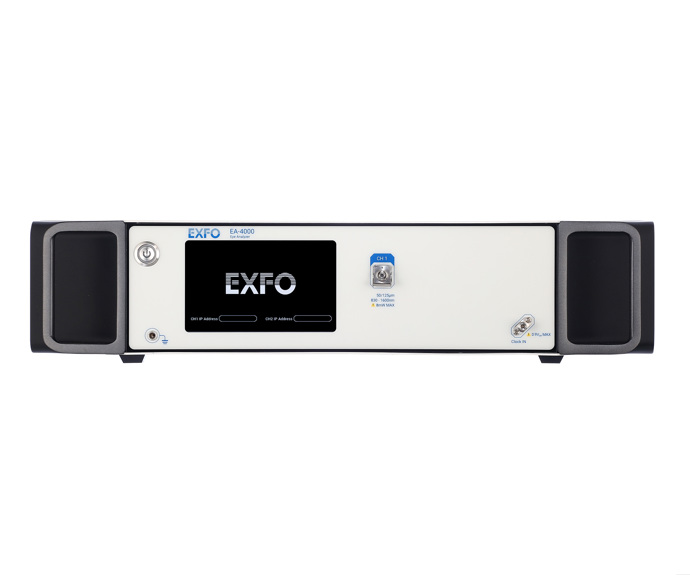

EXFO EA-4000 Eye Analyzer (33 GHz)

TECHNICAL SPECIFICATIONS

Electrical

Sampling speed (sample/s): 1,000,000

Bandwidth (GHz): 33 (at 3 dB)

Input range (Vppd): 1.0 (max.)

Damage amplitude (Vppd): 1.7 (max.)

Connector type: K(f) (50 Ω)

Return loss (dB): –6.5 (at 32 GHz)

RMS noise (mV): 2.0 / 2.5 (max.)

Optical

Unfiltered bandwidth (GHz): 33 (for 28G optical)

Wavelength (nm): 830 to 1600 (full range model); 1250 to 1600 (SMF model)

Return loss (dB): –24 (full range model); –30 (SMF model)

Mask sensitivity (dBm) (CWDM4 mask, mask margin 0%, hit count 0): –8 (at 850 nm); –10 (at 1310 nm)

Damage power (mW): 8

Connector type: FC/PC (50/125 µm) (full range model); FC/PC (9/125 µm) (SMF model)

Clock

Clock input ratio: /2, /4, /8, /16, /32, /64

Trigger jitter (fs): <290

Sensitivity (mV): 100

GENERAL SPECIFICATIONS

Size (H x W x D): 103 mm x 442 mm x 300 mm (4.1 in x 17.4 in x 11.8 in)

Weight: ≤10 kg (22 lb)

Temperature

Operating: 5 °C to 40 °C (41 °F to 104 °F)

Storage: –20 °C to 70 °C (–4 °F to 158 °F)

Relative humidity: 20% to 80%

Power a: 100/120 Vac (50/60/400 Hz); 220/240 Vac (50/60 Hz); 60 W typical/80 W max.

Access interface: Gigabit Ethernet (RJ45 port)
