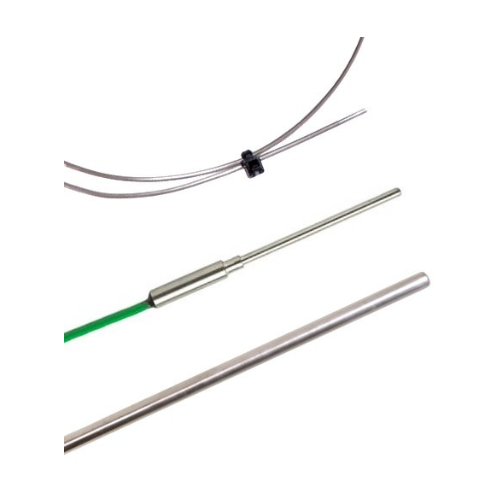

Evikon ET301 Mineral Insulated Thermocouple Sensors (1300°C)

Thermocouple types: K (max 1250 °C)

N (max 1300 °C)

J (max 800 °C)

T (max 400 °C)

Junction: isolated from protection tube

Protection tube: 2.4816 Inconel 600 (K, N)

1.4541 stainless steel (J, T)

Diameter: Ø1.5 / 3 / 6 mm

Length: 250 / 500 / 1000 / 2000 mm,

custom length by request

Cable: unscreened compensation cable

PVC insulation, max 105 °C,

other cable options by request

Protection class: IP68

Mounting accessories: screw-fix flanges

threaded compression fittings

threaded thermowells

Output options: -0 - bare wires, -PC - mini plug
