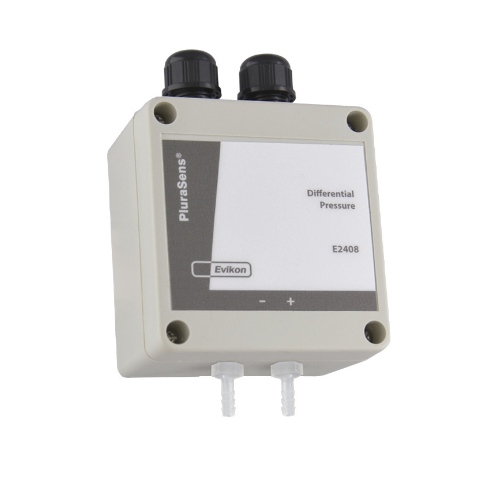

Evikon E2408-DP Differential Pressure Transmitter-regulator (-5~65 °C)

Versions and max measurement ranges: E2408-DF-1K -1000...+1000 Pa

E2408-DF-10K -10...+10kPa

Analog outputs: 2 × 3-wire 0-10 V or 4-20 mA, selectable

Relay outputs: 2 × SPST relays (closing contact), 250 VAC / 30 VDC, 5 A max

Output scales: 0 - 250 Pa, -250…+250 Pa.

0 - 500 Pa, -500…+500 Pa.

0 - 1.0 kPa, -1.0…+1.0 kPa.

0 - 2.5 kPa, -2.5…+2.5 kPa.

0 - 5.0 kPa, -5.0…+5.0 kPa.

0 - 10 kPa, -10…+10 kPa

Resolution: 0.1/10 Pa

Protection class: IP65

Operating conditions: -5...+65°C, <95%RH

Datasheet
