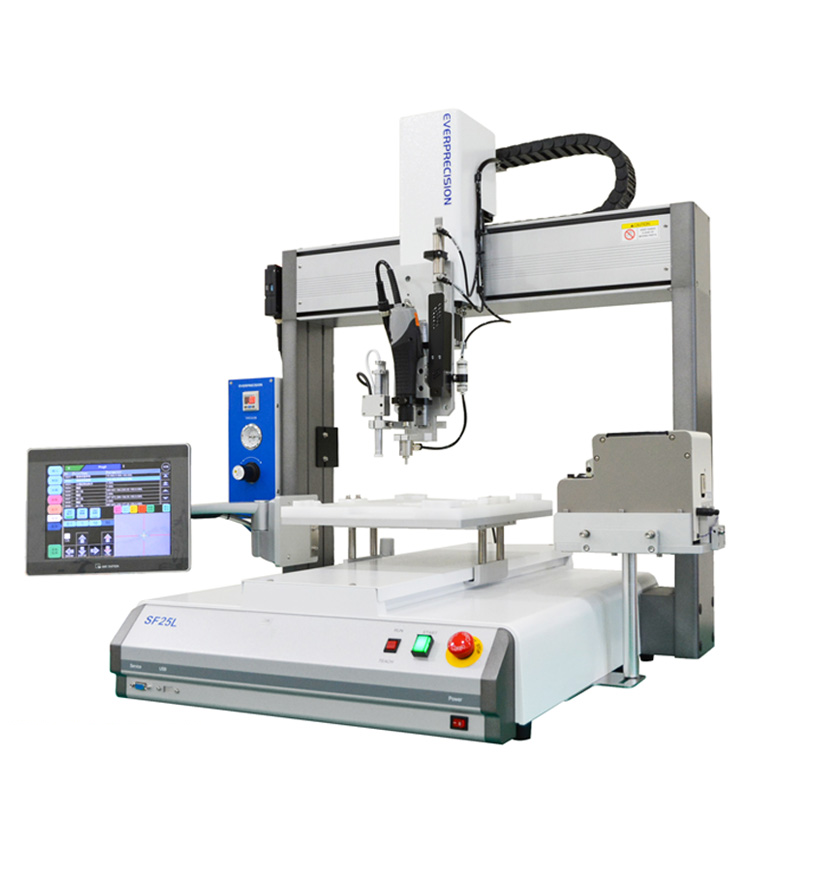

EVERPRECISION SF25L Automatic Screwdriving Machine

Moving Area X/Y/Z (mm): 480 / 480/100 mm

Moving Speed X&Y/Z (mm/sec): XY/Z: 600/600 mm/sec

Data Memory Capacity: 9999 points/prog. 100 programs

Display Mode: Human-machine interface

Electric Screwdriver: Brushless DC voltage

Nozzle Specification: <9mm (maximum diameter)

Screw Feeder System: disc type M1.0~M3.0mm (1.0/1.2/1.4/1.7/2.0/2.3/2.6/3.0)

Working Temp.: 10-40°C

Machine Size WxDxH: 940 x 752 x 868 mm

Working Area X/Y (mm): 450 / 480 mm

Repeatability: +/- 0.01 mm/ Axis

Data Storage Method: USB/SD card

Teaching Mode: Touch screen human-machine interface

Input Power: 100V~230V / 450W

Screw Length: <18mm (maximum diameter)

Working Pressure: 5~7 kg/cm² dry air source

Working Humidity: 20-85% no condensation

Machine Weight: 68 kg
