EVERFINE OLED-1000 OLED Optical-color-electric Performance Analysis System

Sample: Horizontal placement

X translation: ±180mm

Y translation: ±180mm

Z translation: 350mm～600mm adjustable

Translation resolution: 0.01mm

Fixture: Clamping device can perform pitch adjustment

Alignment device: Software auto-alignment can be achieved by the cross laser alignment device and the line laser alignment itself.

Monitoring: Video monitoring system

Optical test instrument: SRC series spectral radiance colorimetr, CX series imaging luminance meter, and etc

Test speed: Quick, medium and slow for choice

Horizontal rotation (H axis): -90° ~ +90°

Vertical rotation(V axis): -90°~ +90°

Angle accuracy: ±0.1°

Signal generator: Android mobile phone install remote special graphics swiching software, computer graphics card HDMI, VGA, DVI and other output, Windows system image signal generating software, customer's signal driver and etc.

Response time and flicker: The quick response tester is equipped to realize the response time and the flicker test

Power supply: High precision precision DC power supply and electrical parameter tester

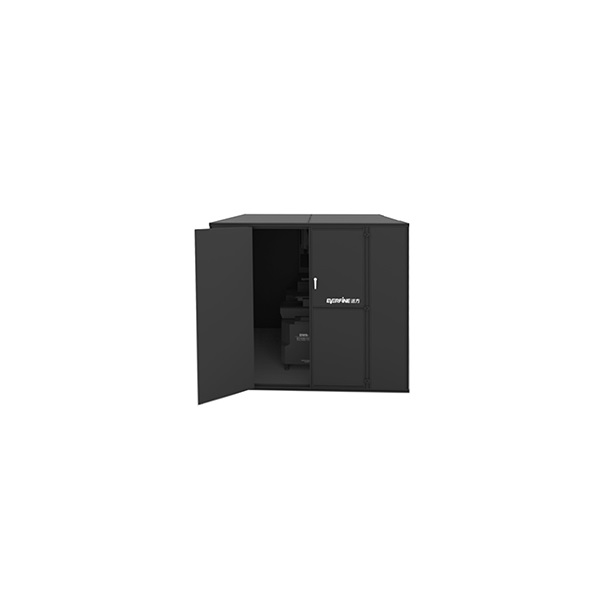

Darkroom: Metallic dark box
