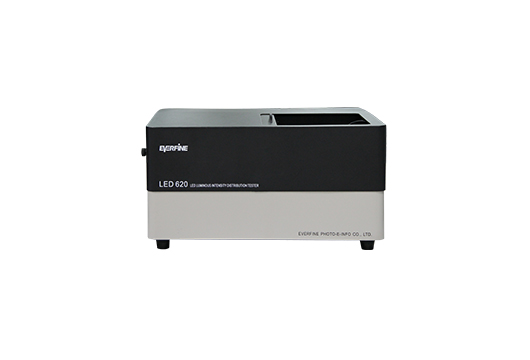

EVERFINE LED620 Goniophotometer (0lm-200lm, 1.000mA～2000.0mA)

Photometer head: CLASS 1, 1cm2 acceptance area

Luminous intensity range: 10mcd~200cd

Precise LED orientation and alignment design

Automatic rotation of LEDs around vertical axis (γ)(automatic): ±10º ~ ±90º

and horizontal axis (C)(manual): 0°～360°

Scanning interval of angle: 0.1°、0.2°、0.5°、1° selectable

Accuracy of angle: ±0.05º

Luminous flux range:0lm-200lm

Forward current IF: 1.000mA～2000.0mA

Forward voltage VF: 0.001V～15.000V

Reverse leakage current IR: 0.01μA～100.00μA

Reverse voltage VR: 0.01V～10V

Accuracy of electrical parameters: ±0.2%F.S.

Warm-up time: 0ms-9999ms
