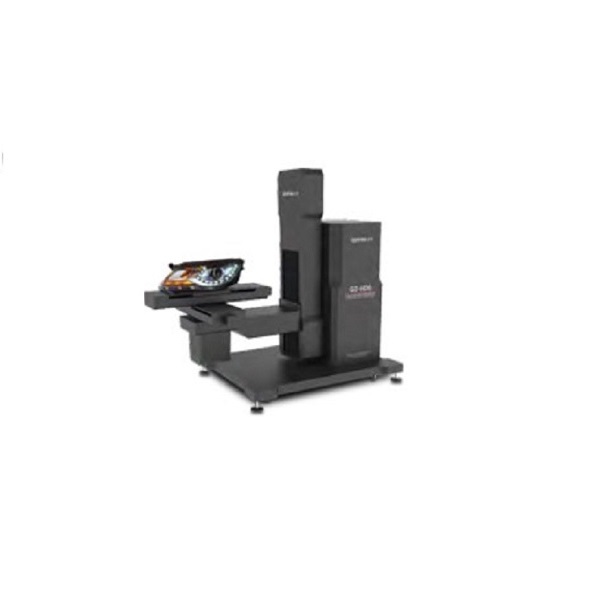

EVERFINE GO-HD6 Goniophotometer For Automotive And Singal Lights (-180°~ +180°(H); -120°~ +120°(V))

Horizontal rotation range of the test lamp under around the vertical axis (i.e. axis C) (H): -180°~ +180°

Vertical rotation range of the test lamp under around the horizontal axis (i.e. axis A) (V): -120°~ +120°

Horizontal and vertical rotation angle accuracy: ±0.01°

Maximum speed of rotation: Horizontal:50 degree / second;

Center height of turntable: 1500mm±30mm

The maximum size of the lamp under test: 1600mm

Vertical lifting range of working platform (z-axis): Range:0~600mm

Maximum load on the work platform: 75Kg
