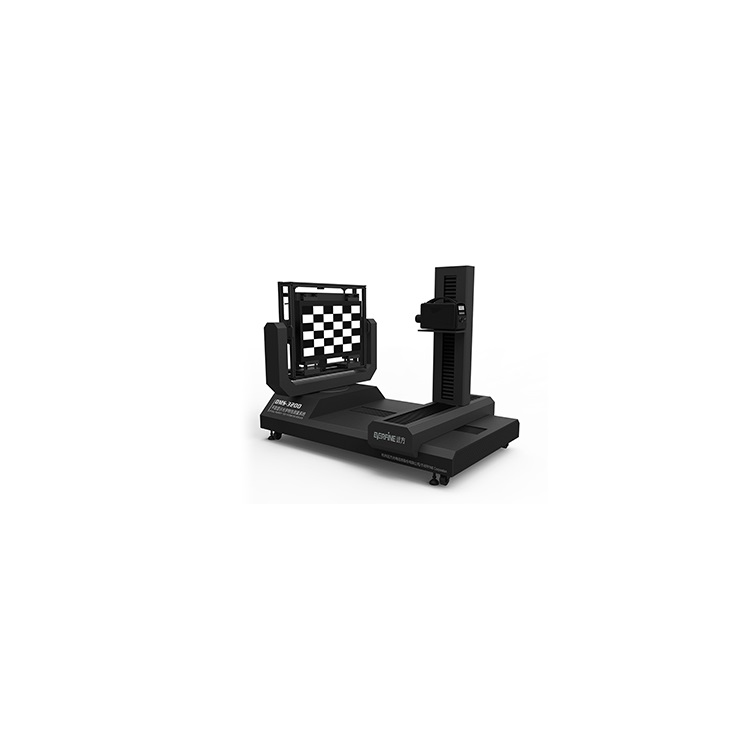

EVERFINE DMS-3200 Optical Property Test System for FPD

Measurement size: 14-32 inches

Sample: Horizontal placement

X translation: ±400mm

Y translation: ±300mm

Z translation: 400mm～1200mm adjustable

Translation resolution : ±0.01mm

Fixture: Clamping device can perform pitch adjustment

Alignment device: Software auto-alignment can be achieved by the cross laser alignment device and the line laser alignment itself.

Monitoring: Video monitoring system

Optical test instrument: SRC series spectral radiance colorimetr, CX series imaging luminance meter, and etc.

Test speed: Quick, medium and slow for choice

Response time and flicker: The quick response tester is equipped to realize the response time and the flicker test.

Signal generator: Android mobile phone install remote special graphics swiching software, computer graphics card HDMI, VGA, DVI and other output, Windows system image signal generating software, customer's signal driver and etc.

Power supply: High precision precision DC power supply and electrical parameter tester

Darkroom: 4m(width)*5m（length）
