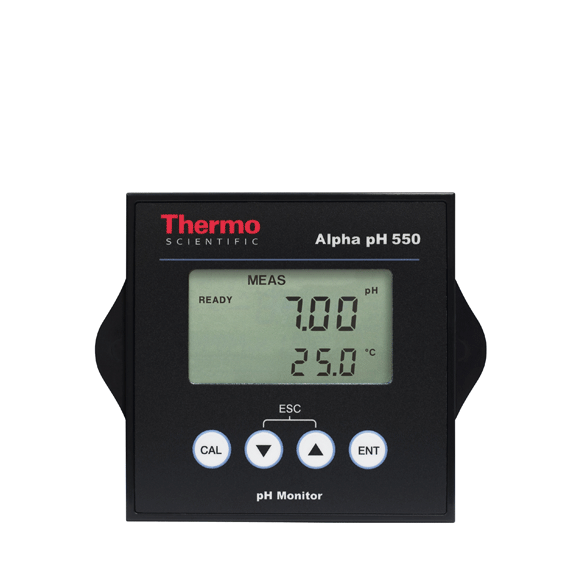

Eutech TSPHCP0550 Alpha pH 550 pH/ORP Monitor (12 ~ 24 VDC /9 VDC)

- pH

Range: 0.00 to 14.00 pH

Resolution: 0.01 pH

Accuracy: ±0.01 pH

- ORP

Range: -1000 to 1000 mV

Resolution: 1 mV

Accuracy: ±1 mV

- Temperature

Range: -10.0 to 125.0 ºC / 14.0 to 157.0 ºF

Resolution: 0.1 ºC / 0.1 ºF

Accuracy: ±0.5 ºC / ±0.9 ºF

Sensor: Pt100; 2 or 3 wire

Compensation: Auto/manual

- Electrical Data And Connections

pH/ORP Input: 2-pin terminal; asymmetrical/symmetrical

Connection Terminal: 2-pin & 8-pin terminal, detachable blocks; DC jack

- Display

LCD: 7 segments display with symbols for status information

- Power Supply

Input: 12 to 24 V DC or 9 V DC

Operating Temperature Range: 0 to 40 ºC

Max. Relative Humidity: 80 % up to 31 ºC decreasing linearly to 50 % at 40 ºC

- Dimensions (WxHxD): 96 x 96 x 66 mm

Weight: 210 g (unit) / 310 g (packed)

Ingress Protection: IP65

Include: cable glands, terminal blocks, gasket, threaded rods, catch, power adapters, etc
