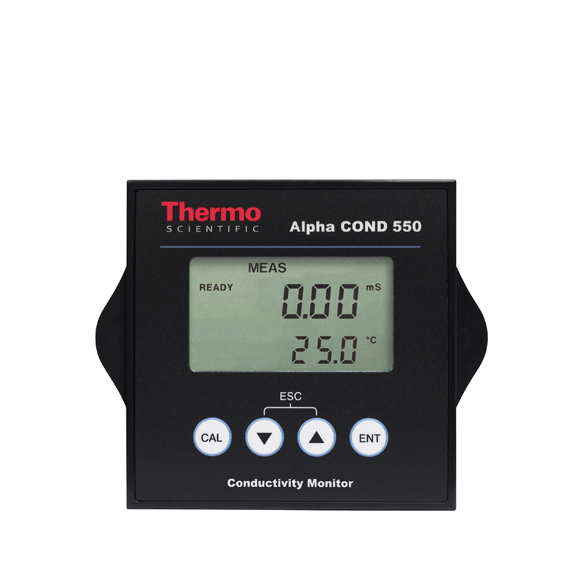

Eutech TSCONCP0550 Alpha COND 550 Conductivity Monitor (12 ~ 24 VDC /9 VDC)

- Conductivity

Range:

... to 2 µS/cm ; ... to 20 µS/cm ;

... to 200 µS/cm ; ... to 2000 µS/cm ;

... to 20 mS/cm ; ... to 200 mS/cm

Resolution:

0.001 µS/cm ; 0.01 µS/cm ;

0.1 µS/cm ; 1 mS/cm ;

0.01 mS/cm ; 0.1 mS/cm

Accuracy: ±1 % of full scale reading (±2 % >500 mS/cm)

Cell Constant: 0.01 ; 0.1 ; 1 ; 10

- Temperature

Range: -10.0 to 125.0 ºC / 14.0 to 157.0 ºF

Resolution: 0.1 ºC / 0.1 ºF

Accuracy: ±0.5 ºC / ±0.9 ºF

Sensor: Pt100; 2 or 3 wire

Compensation: Auto/manual

Coefficient: 0 to 10 % (selectable)

Normalization: 20.0 to 25.0 ºC (selectable)

- Electrical Data And Connections

Conductivity Input: 2-pin terminal

Connection Terminal: 2-pin & 8-pin terminal, detachable blocks; DC jack

- Display

LCD: 7 segments display with symbols for status information

BacklightYes (on/off selectable)

- Power Supply

Input: 12 to 24 V DC or 9 V DC

Operating Temperature Range: 0 to 40 ºC

Max. Relative Humidity: 80 % up to 31 ºC decreasing linearly to 50 % at 40 ºC

- Dimensions (WxHxD): 96 x 96 x 66 mm

Weight: 210 g (unit) / 310 g (packed)

Ingress Protection: IP65

Include: cable glands, terminal blocks, gasket, threaded rods, catch, power adapters, etc
