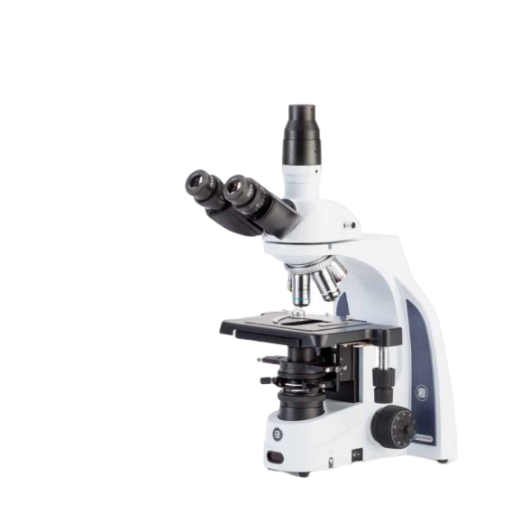

Euromex IS.1053-PLAi iScope trinocular microscope (EWF 12.5x/15 mm, 4x/10x/S40x)

EWF 12.5x/15 mm eyepiece, EWF 12.5/15 mm eyepiece with Walton-Bracket reticle

Trinocular version with Siedentopf 30° inclined tubes. Interpupillary distance 48-76 mm with diopter adjustment on both eyepieces

Revolving quintuple reversed nosepiece on ball bearings

Plan PLi 4x/0.10, 10x/0.25 objectives, and Plan Phase PLPHi S40x/0.65 IOS objective

All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

187/230 x 140 mm rackless stage equipped with integrated 79 x 52 mm mechanical stage

Height adjustable Abbe N.A. 1.25 condenser with phase contrast annuli in slider for S40x PLPHi objective

Coaxial coarse and fine adjustments with 200 graduations. Precision 1 μm, 0.2 mm per rotation. Total travel approximately 24 mm

Rack-stop for protection of slides and objectives. Friction adjustment

Diascopic intensity adjustable 3 W NeoLED™ Köhler illumination with Internal 100-240 V power supply (CE)

iCare Sensor: the illumination of the microscope automatically switches off when the microscopist steps away from his position, saving energy

CSS - Cable Storage System. The Cable Storage System of the iScope allows the user to easily insert the power cable into the back of the instrument

Supplied with power cord, 500 mA 250 V spare fuse and dust cover in styrofoam case
