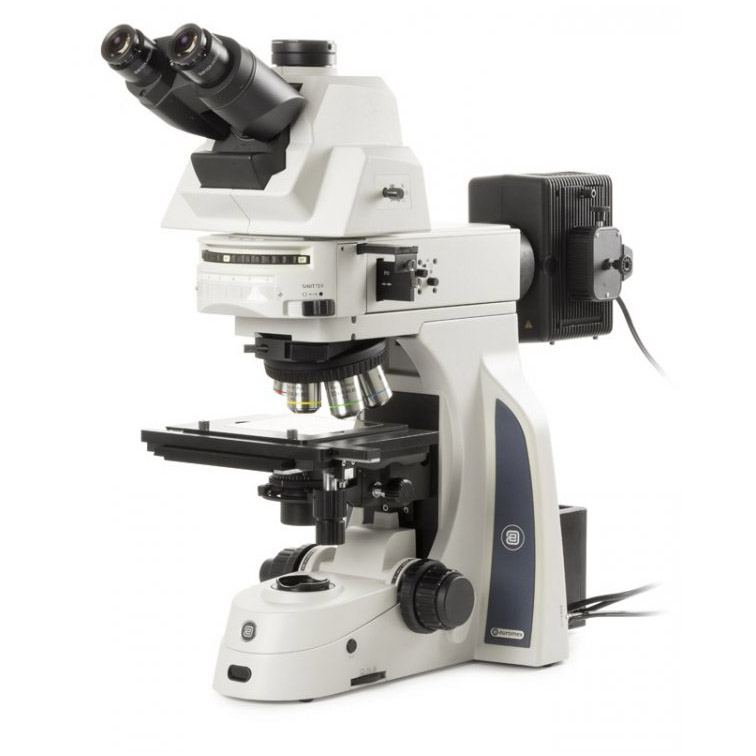

Euromex DX.2058-PLPOLRi Delphi-X Observer trinocular microscope for Materials Sciences (SWF 10x/25 mm, 5/10/20/50)

SWF 10x/25 mm eyepieces

Trinocular head with tilting head and Siedentopf 30° inclined Ø 30 mm tubes. Interpupillary distance 47-78 mm with diopter adjustment on both eyepieces

3-positions beamsplitter (0:100/ 100:0/ 80:20)

Revolving quintuple reversed nosepiece on ball bearings

Plan PLPOL 5x/0.15, 10x/0.30, 20x/0.45, 50x/0.80 IOS strain free objectives, M25

All optics are anti-fungus treated and antireflection coated for maximum light throughput

Polarization attachment with Bertrand lens, lambda, 1/4 lambda and quartz wedge compensators in slider.

Rotatable 190 mm stage

Height adjustable Abbe swing-out N.A. 1.25 condenser with numerical aperture engravings.

Working distance 10.2 mm

Coaxial coarse and fine adjustments with 100 graduations. Precision 1 μm, 0.1 mm per rotation. Total travel approximately 35 mm

Rack-stop for protection of slides and objectives. Friction adjustment

Transmitted and reflected 100 W halogen adjustable epi-illumination and internal 100-240 V power supply (CE)

iCare Sensor: the illumination of the microscope automatically switches off when the microscopist steps away from his position, saving energy

Carrying grip at the back of the microscope for safe transportation and Allen screwdriver inintegrated holder.

Supplied with power cord, 500mA 250 V spare fuse, 5 ml immersion oil, dust cover and user manual, all packed in carton shipment box

Datasheet
