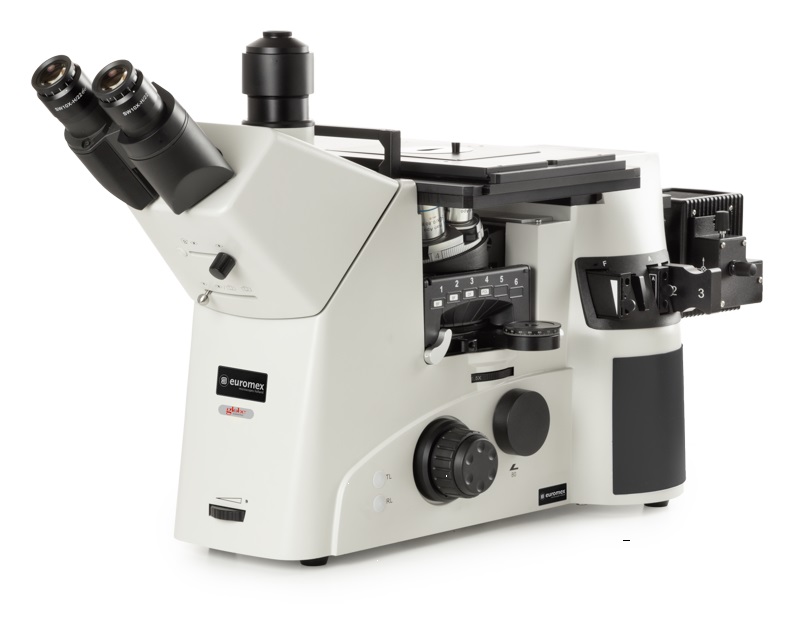

Euromex DI.2053-PLMi Trinocular Delphi-X Inverso inverted microscope for Material Science (HWF 10x/22 mm, 5x/10x/20x/50x)

HWF 10x/22 mm eyepieces

Trinocular head, 45° inclined tubes with 100-0/20-80/0-100 beamsplitters built-in Bertrand lens

Interpupillary distance 47-78 mm. Diopter adjustment on both eyepieces

Reversed sextuple revolving nosepiece on ball-bearings

Plan Semi-Apochromatic PL-SAMi 5x/0.15, 10x/0.30, 20x/0.40 and Plan Apochromatic PLAMi 50x/0.80 IOS infinity corrected bright/darkfield 45 mm parfocal objectives. No cover glass correction. M25 thread

All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

340 x 230 mm stage with 130 x 85 mm mechanical X-Y stage

Coaxial coarse and fine adjustments with 200 graduations. Precision 1 μm, 0.2 mm per rotation. Total travel approximately 10 mm

6-position multifunctional wheel, supplied with cubes for two brightfield, one darkfield and one polarization filter. Slider with prisms for the 5x/20x and 50x/100x magnifications and slider with analyzer

Lens changer with 1.5x magnification lens for intermediary magnifications without refocusing.

Transmitted 100 W halogen with adjustable intensity and internal power supply 100-240 V (CE)

Datasheet
