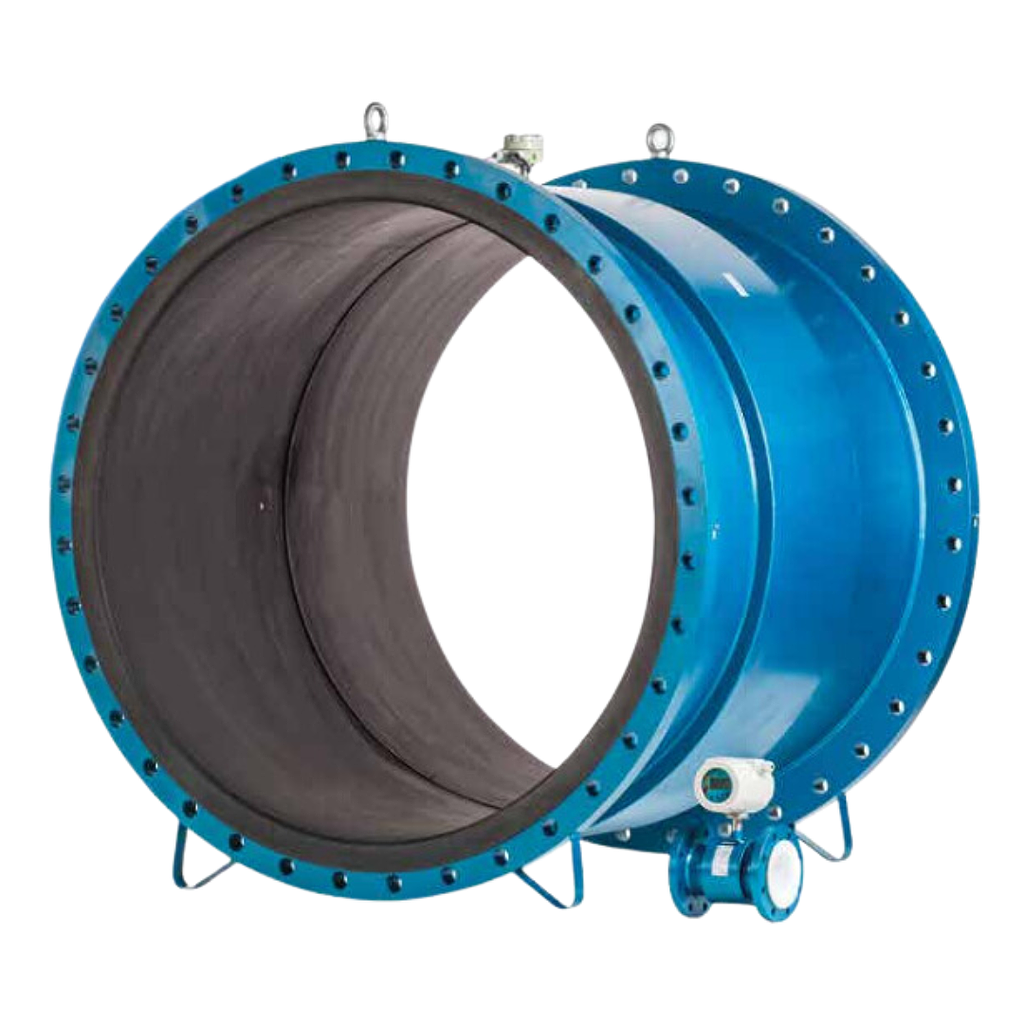

Euromag SENSOR MUT2200EL Electromagnetic flowmeter

Technical Specifications

Flow tube material: AISI 304 (std), AISI 316

Flanges material: Carbon steel painted (std), AISI 304, AISI 316

Electrodes material: Hastelloy C (std), Hastelloy B, Titanium, Tantalio, Platinum

Internal lining and liquid temperature:

Internal lining: PTFE / Liquid temperature: Standard -40 /+130°C (up to +180° on request)

Internal lining: Ebonite / Liquid temperature:-40°C / +80°C

Available sizes (mm): 15, 20, 25, 32, 40, 50, 65, 80, 100, 125, 150, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000, 1200, 1300, 1400, 1500, 1600, 1700, 1800, 2000

Flange standards available: EN1092-1, ANSI 150, ANSI 300, ANSI 600, ANSI 900, DIN 2501, BS 4504, AS 2129 (TABLE D - E - F), AS 4087, ISO 7005-1, KS 10K

Protection Degree: IP68 1,5 m continuous immersion (EN 60529)

Compatible converters: MC608 A/B/R/P/I, MC406

Electrical connections: Cable glands M20 x 1.5 + terminal block + sealing resin

MUT2200EL for water cycle and process applications.

Applications:

• Water treatment

• Water distribution

• Industrial waste water

• Industrial processes

• Slurries

• Irrigation

• Pumping stations

• Dams

• Mining
