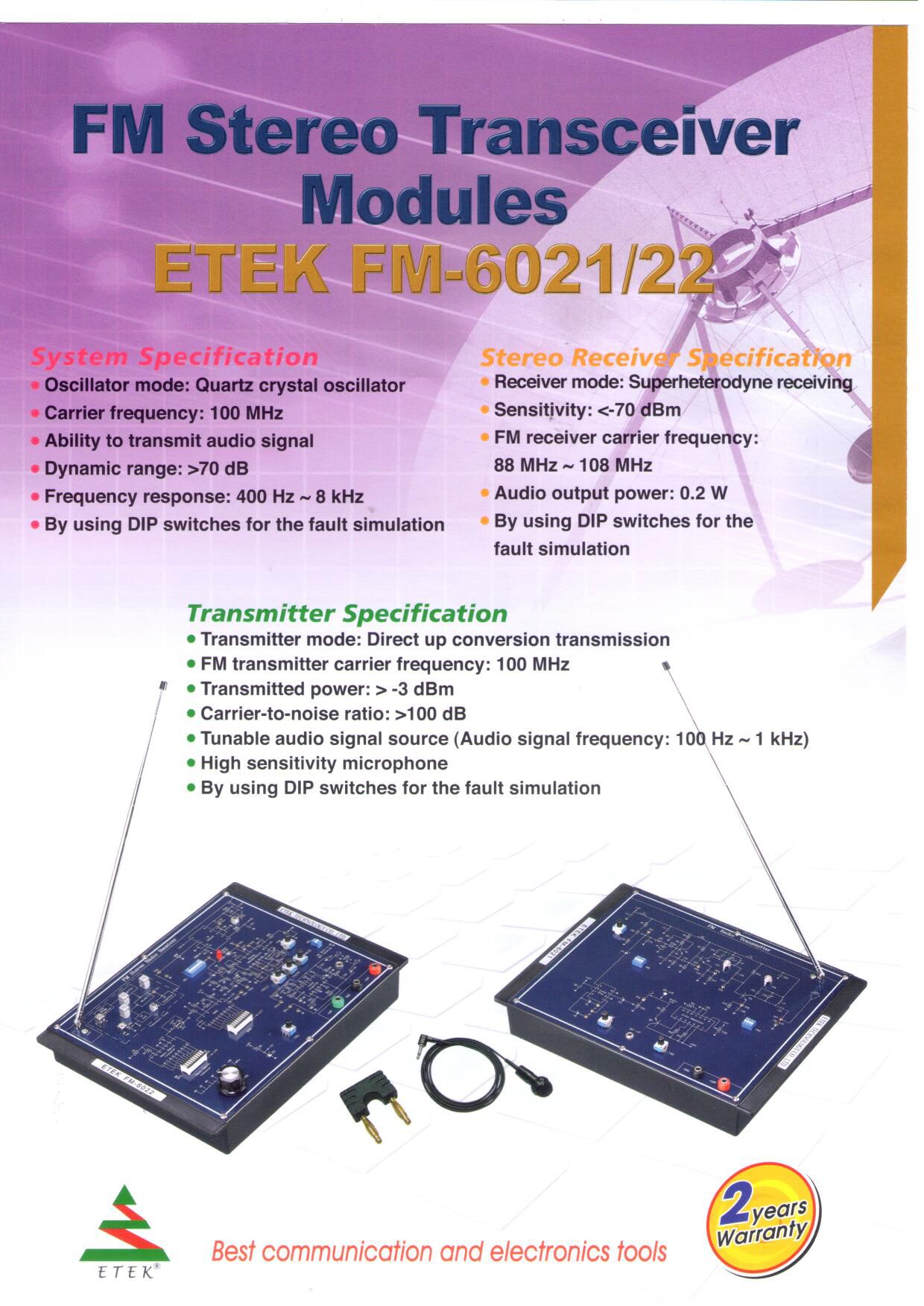

ETEK FM-6021/22 FM Stereo Transceiver Modules (100 MHz)

System Specification

1. Oscillator mode: Quartz crystal oscillator

2. Carrier frequency: 100 MHz

3. Ability to transmit audio signal

4. Dynamic range:＞70 dBm.

5. Frequency response: 400 Hz ~ 8 kHz

6. By using DIP switches for the fault simulation

Transmitter Specification

1. Transmitter mode: Direct up conversion transmission

2. FM transmitter carrier frequwncy:100 MHz

3. Transmitted power:＞ -3 dBm

4. Carrier-to-noise ratio:＞ 100 dBm

5. Tunable audio signal source (Audio signal frequency: 100 Hz ~ 1 kHz)

6. High sensitivity microphone

7. By using DIP switches for the fault simulation

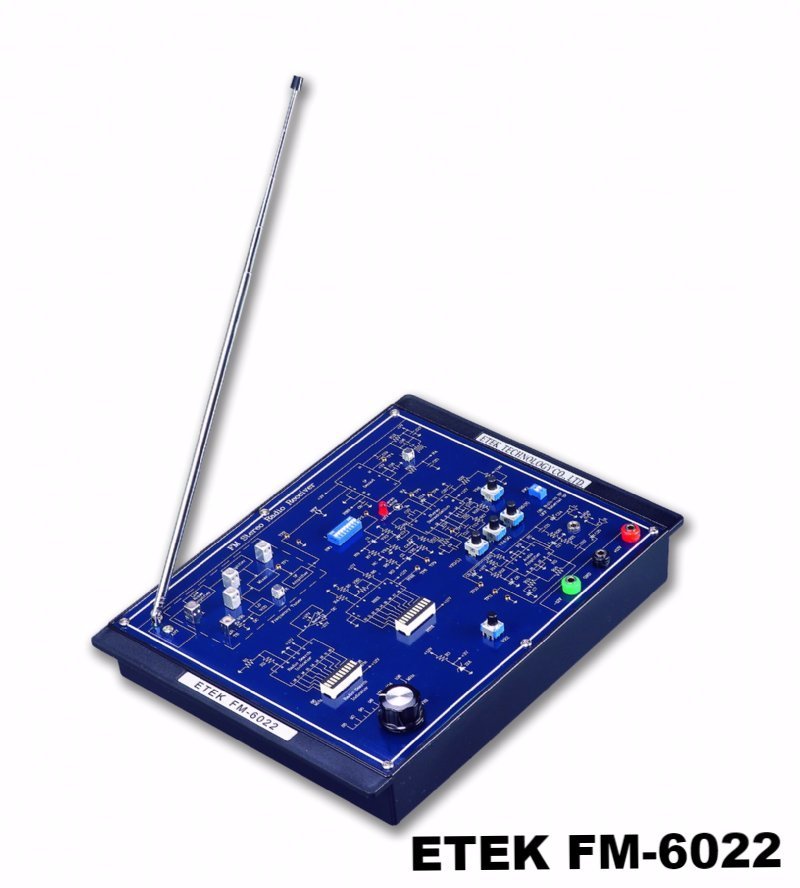

Stereo Receiver Specification

1. Receiver mode: Superheterodyne receiving

2. Sensitivity: ＜-70 dBm

3. FM receiver carrier frequency: 88 MHz ~ 108 MHz

4. Audio output power: 0.2 W (200 mW)

5. By using DIP switches for the fault simulation
