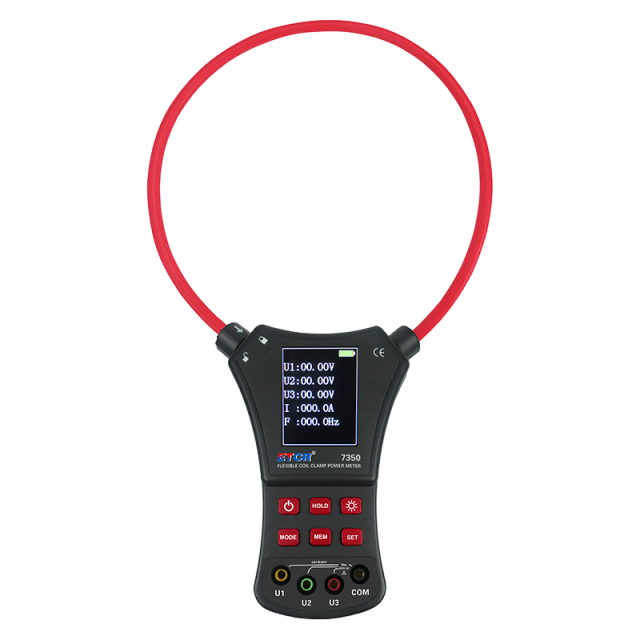

Clamp Size: Φ 200mm
Weight: 266g (include battery)
Meter Size: 200mmX370mmX35mm
Current Measurement: Range: AC 0.0A~6000A | Accuracy: ±0.5%Fs | Resolution 0.1A
Voltage Measurement: Range: AC 0.01V~600V | Accuracy: ±0.5%Fs | Resolution: 0.01V
Active Power Measurement: Range: 0.00W~3600kW | Accuracy: ±1%Fs | Resolution: 0.01W
Apparent Power Measurement: Range: 0.00VA~3600kVA | Accuracy: ±1%Fs | Resolution: 0.01VA
Reactive Power Measurement: Range: 0.00var~3600kvar | Accuracy: ±1%Fs | Resolution: 0.01var
Power Factor Measurement: Range: 0.300~1.000 | Accuracy: ±1%Fs | Resolution: 0.001
Electric Energy Measurement: Range: 0.00Wh~360000kWh Accuracy: ±1%Fs Resolution: 0.01Wh
Frequency Measurement: Range: 25.0Hz~600.0Hz | Accuracy: ±0.5Hz | Resolution: 0.1Hz
Phase Measurement: Range: 0.0°~360.0° | Accuracy: ±0.5° | Resolution: 0.1°
Power Supply: 6V DC alkaline dry battery (LR03 1.5VX4PCS)
Working Current: Backlight open 80mA; Backlight close 50mA
Sampling RateL 2 times/second
Frequency: 50Hz/60Hz automatic identification Communication Interface With USB interface, storage data can be uploaded to computer, convenient to data analyze, communication cablelength: 1.8m
Data Storage: 200 groups , flash display “FULL” symbol indicate storage full
Data Hold: Data hold function: “HOLD” symbol display
Overflow Display: Over range overflow function: “OL” symbol display
Auto Shut Down: 15 minutes after power on, it will shut down automatically without any operation to reduce the power consumption.
Battery Voltage: While battery voltage is lower than 4.8V. low battery voltage symbol “ ” display, remind to replace the battery
Backlight: Yes, Controlled by “ * ”key
Working Temperature: -10℃~40℃; Below 80%RH
Accessories: Meter: 1PCS; Test Wires: 4PCS (each of yellow, green, red, black); USB communication cable: 1PCS; LR03 Battery: 4PCS ; Meter bag: 1PCS
