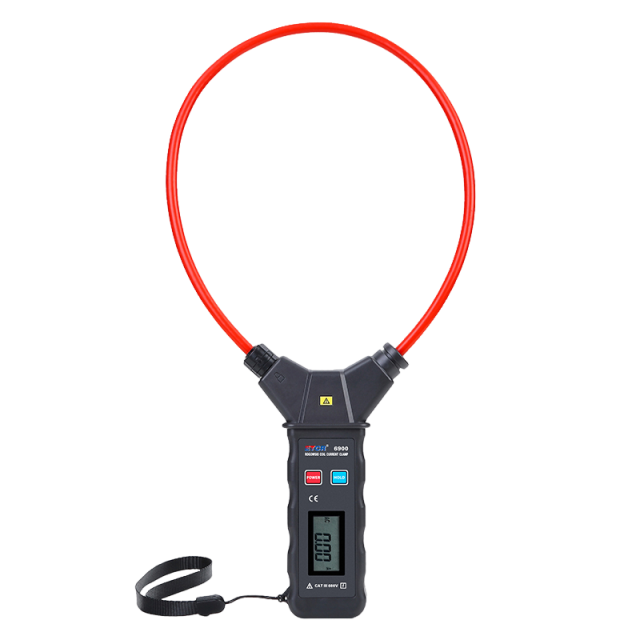

Power Supply: Zn-Mn dry battery 6F22 9V
LCD Size: 35mm×21.5mm; display area: 32mm×15mm
Measurement Range: AC 0.00A~9999A
Solution: AC 10mA
Accuracy: ±2%rdg±3dgt(the wire is at the center of the flexible coil,23℃±2℃)
Coil Diameter: φ200mm
Coil Thickness: φ7.5mm
The Measured Current Frequency: 50Hz/60Hz(Automatic)
Backlight: with backlight, convenient to use in dark site
Meter Size: 190mm×370mm×40mm
Weight: Meter: about 200g(include battery);total weight: about 0.38kg(include accessory)
Electric Field Interference: No hysteresis effect, strong anti-interference ability
Position Error: The measured wire should be in the center of the flexible coil as far as possible, not close to the opening and closing mouth, the test error at the opening and closing mouth will increase by one times or more
Sampling Rate: 2 times /second
Memory: 99 groups,flicker to flash display "FULL" symbol indicate storage full
Peak Hold: Peak value capture and hold function, long press POWER key display peak value, and the peak value symbol display
Data Hold: Data hold function: "DH" symbol display
Line Voltage: Line measurement below AC600V
Overflow Display: Exceed measure range overflow function: “OL”symbol display
Battery Level: While battery voltage is lower than 7.2V. low battery voltage symbol display, remind to replace the battery
Rated Current: About 8mA
Insulation Resistance: 100MΩ or larger, 1000V
Suitable Safety Standard: IEC1010-1, IEC1010-2-032, Pollution level 2, CAT VI(1000V) IEC61326(EMC standard)
Working Temperature & Humidity: -10℃~40℃; below 80%RH
Storage Temperature & Humidity: -10℃~60℃; below 70%RH
