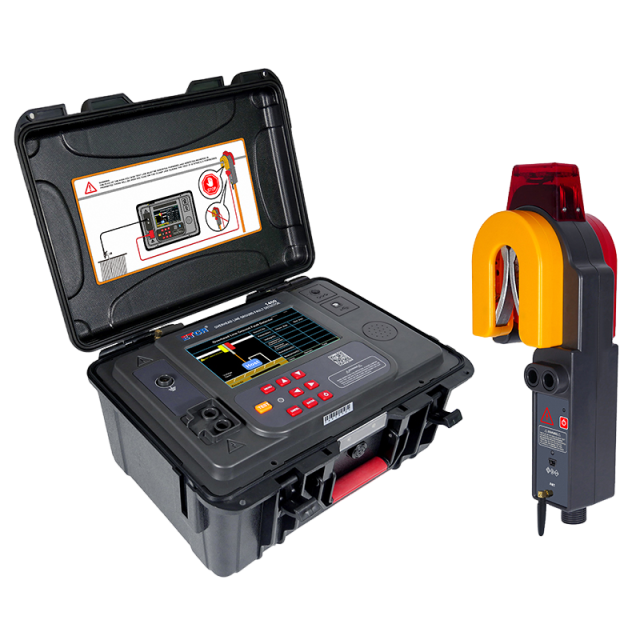

ETCR ETCR1400 Integrated Overhead Line Ground Fault Detector (3000V/8000V, ≤50mA, ≤150kΩ, 50Hz)

Power Supply: Host: 14.8V 5200mAh lithium battery; detection clamp: 3.7V 2600mAh lithium battery

Displayer: 7 inch true-color LCD, 153.8mm×85.6mm

Measurement Method: Clamp type CT

Output Voltage: AC 3000V/8000V

Output Current: ≤50mA

Earth Fault Resistance: ≤150kΩ

Line Reactance: ≤30MΩ

Output Frequency: 50Hz

Clamp Jaw Size: Φ36mm

Electricity Verification Alarm: Detect whether the tested cable is live, emit sound and light alarm if live.

Voice Broadcast: Yes

Communication Method: 433MHz wireless communication

Wireless Communication Distance: 50m(in open environment)

Bluetooth Communication Distance: 40m(in open environment)

Data Upload: The host has a USB interface for uploading test data.

Automatic Shutdown: The detector will automatically shut down after 15 minutes of no-operation.

Battery Level Display: Display the battery level of host and detection clamp.

Detector Size: Host: 355mm×272mm×164mm; Detection clamp: 297mm×118mm×94mm

Weight: Host: about 7610g; detection clamp: about 785g; total weight: 17.4kg (include insulation rod)

Battery Level: Display the battery level of host and detection clamp.

Working Height: Altitude <5000m

Insulating Rod Size: About 4300mm

Working Temperature & Humidity: Temperature: -20℃~70℃; Humidity: 5~90％RH
