Rated Voltage: Three phase four wire: 220V (phase voltage)
Rated Frequency: 50Hz
Normal Voltage Range: 0.8Un~1.2Un
Static Power Consumption Of The Meter: ≤ 3.5W
Test Distance: 5km
Identification Cycle: 6 seconds
One Recognition Success Rate: >99%
Electrical Parameter Accuracy: ≤1%
Phase Angle Test Range: -179.9°~180.0°
Harmonic Test: Yes, 2~34 times
Total Harmonic Distortion: Yes, 2~34 times, each phase
Memory: 9999 groups

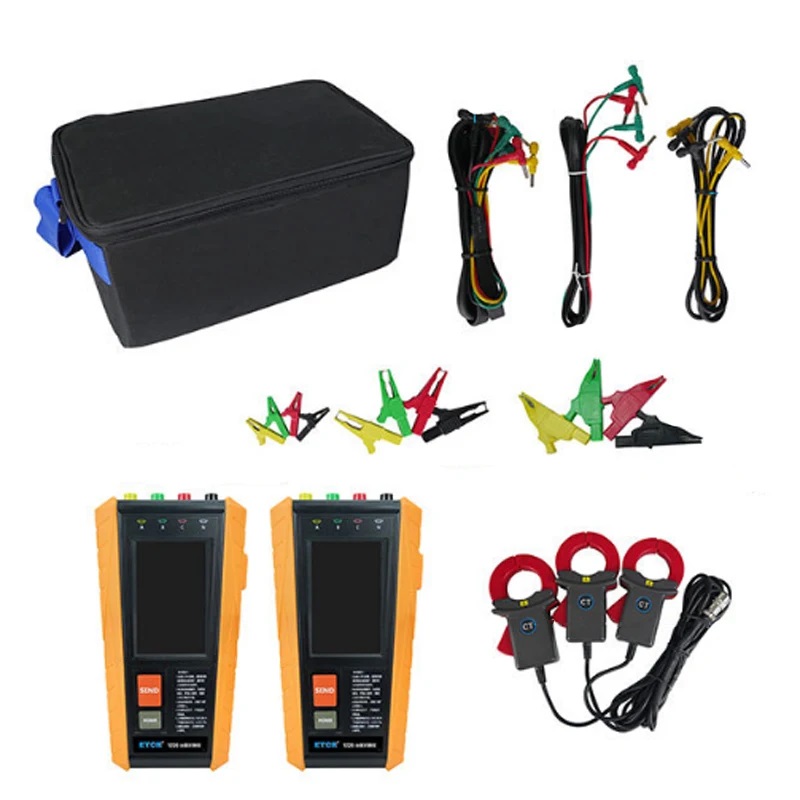

Host Test Line: Double lock 4 core test line (yellow, green, red, black)
Slave Test Line: Double lock 4 core test line (yellow, black), 220V test line (red, black)
Large Alligator Clip: 4 PCS
Large Alligator Clip: 4 PCS (with a hook)
Small Alligator Clip: 4 PCS
Current Clamp Group: 1 group (3 PCS)
Meter Size: 225mm×118mm×48mm
Weight: Instrument: about 730g×2 PCS; Total weight: about 1.7kg (include accessory)
Insulation: Between the instrument line and protective housing≥100MΩ
Structure: Double insulation, with insulated anti-vibration sheath
Suitable Safety Standard: GB/T 2423.10 GB/T 2423.2 GB/T 2423.1 GB/T 17626.11 GB/T 17626.5 GB/T 17626.8 GB311.3-83，IEC61010-031, IEC61010-1 CAT Ⅲ 600V
Working Temperature & Humidity: -30℃~70℃; below 80%RH
