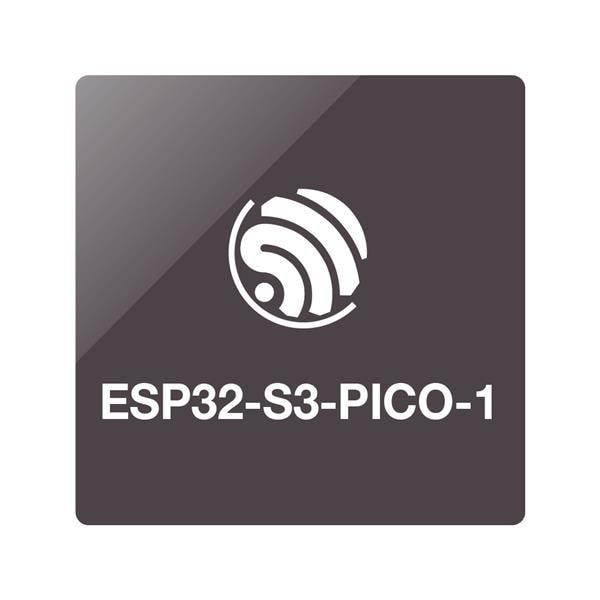

Espressif Systems ESP32-S3-PICO-1-N8R2 RF System on a Chip - SoC ESP32-S3-PICO-1 is a System-in-Package (SiP) device that is based on ESP32-S3 with integrated 2.4 GHz Wi-Fi and Bluetooth Low Energy (Bluetooth LE). It integrates 8 MB SPI flash and 2 MB SPI PSRAM.

Width: 7 mm

Height: 0.96 mm

Length: 7 mm

Technology: Si

Data RAM Size: 2 MB

Data RAM Type: PSRAM

Data Bus Width: 32 bit

Interface Type: GPIO, I2C, I2S, SPI, UART

Mounting Style: SMD/SMT

Processor Series: Xtensa

Moisture Sensitive: Yes

Program Memory Size: 8 MB

Program Memory Type: Flash

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 3 V

Operating Supply Voltage: 3.3 V

Operating Temperature Range: - 40 C to + 85 C

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
