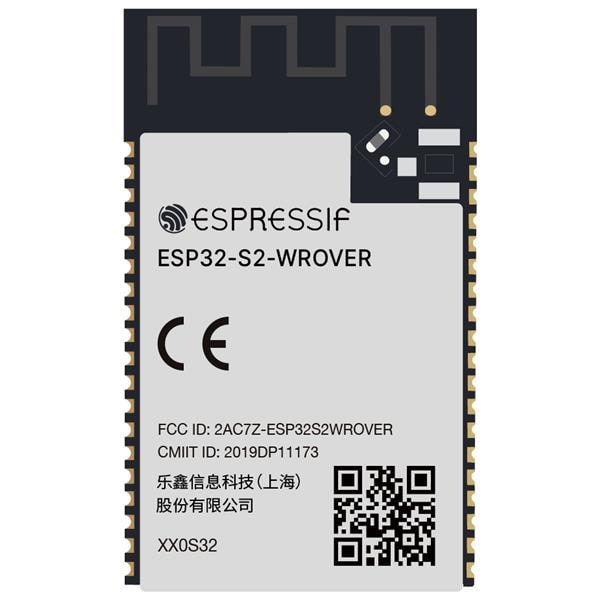

Espressif Systems ESP32-S2-WROVER(M22S2H3216PH3Q0) WiFi Modules SMD Module ESP32-S2-WROVER, ESP32-S2, 3.3V 16Mbits PSRAM, 32Mbits SPI flash, PCB Antenna

Data Rate: 150 Mb/s

Frequency: 2.412 GHz to 2.484 GHz

Dimensions: 18 mm x 31 mm x 3.3 mm

Unit Weight: 9.245 g

Output Power: 13 dBm, 15 dBm, 19.5 dBm

Interface Type: GPIO, I2C, I2S, PWM, SPI, UART, USB 1.1 OTG

Moisture Sensitive: Yes

Protocol Supported: 802.11 b/g/n

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 3 V

Antenna Connector Type: PCB

Operating Supply Voltage: 3.3 V

Supply Current Receiving: 63 mA, 68 mA

Supply Current Transmitting: 160 mA, 200 mA, 220 mA, 310 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
