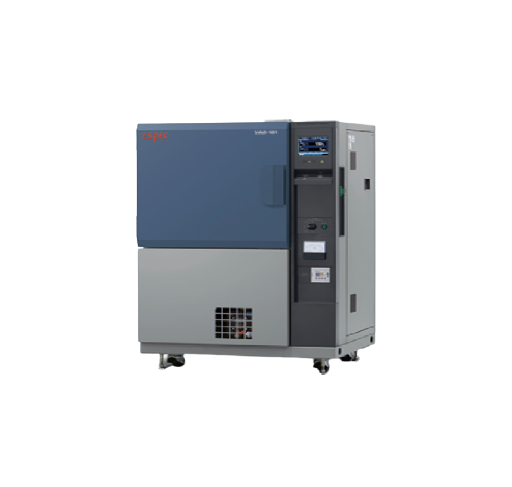

ESPEC VAC−101P Vacuum oven (40~200℃, 933×102~1×102 Pa, 91L)

Pressure control system: PID control

Temperature performance:

Temperature range: ＋40 to ＋200℃ (＋104 to ＋392℉)

Temperature constancy: ± 0.5℃ (vacuum), ±1℃ (atmospheric)

Time to reach extreme temperature value: Within 50 min.

Pressure performance:

Pressure range: 933×102 to 1×102 Pa

Ambient pressure: Less than 133 Pa

Pull-down time: From atmospheric pressure to 133 Pa within 7 min.

Atmospheric pressure recovery time: Inlet open to atmosphere within 4 min.

Fittings: Leveling feet and casters (free wheel) 4pcs each, Time signal terminals × 2pcs

Effective internal volume: 91 L

Effective internal dimensions: W450×H450×D450 mm

Outside dimensions: W902×H1392×D782 mm

Weight: 320 kg

Shelf support load resistance: up to 100kg (30kg/ stage, Total load of 5 stages)

Test area load resistance: up to 100kg

Allowable ambient conditions: ＋12 to ＋35℃ (＋41 to ＋ 95℉)

Power supply:

220V AC 1φ 50/60Hz: 13.2 A

230V AC 1φ 50/60Hz: 12.8 A

ACCESSORIES:

● Breaker handle stopper: 1

● Cartridge fuse (3A): 1

● User's manual: 1

● Warranty card: 1
