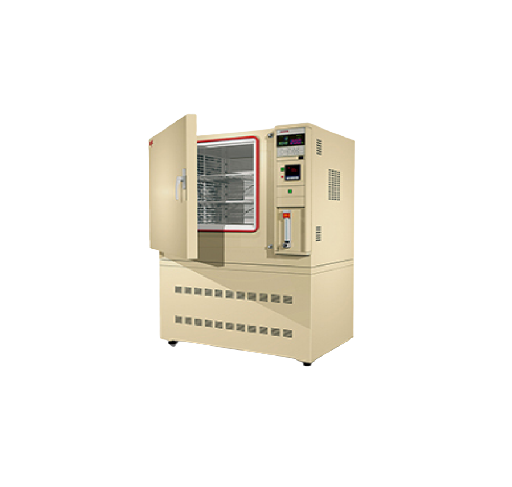

ESPEC IPHH-202L Anaeronic Oven (50~350°C, 216L)

Power supply: 200V AC φW 50/60Hz (Supporting any power supply voltage as an option)

Maximum voltage: 3.8VA

Method: Forced hot air circulation

Performance:

Temperature range: Ambient temperature +50 to +350°C

Temperature fluctuation width: ±0.1°C at 100°C

±0.2°C at 200°C

±0.2°C at 350°C

Temperature uniformity: ±0.5°C at 100°C

±1.5°C at 200°C

±3.0°C at 350°C

Temperature heat-up time: Within 80 minutes from ambient temperature to +350°C

Inside capacity: 216 L

Dimensions:

Inside dimensions: W600×H600×D600mm (excluding protrusions)

Outside dimensions: W1190×H1700×D825mm (excluding protrusions)

Weight: 250 kg

Datasheet
