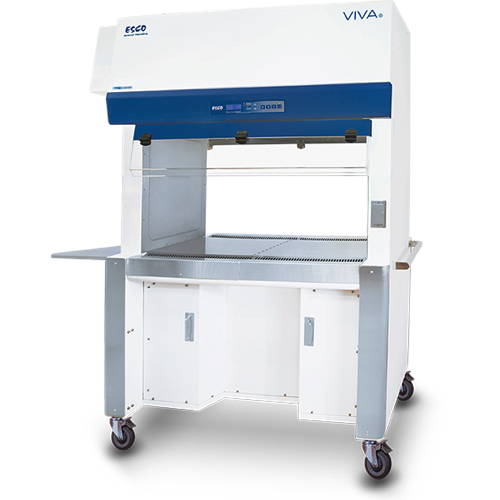

ESCO VDA-4A9 Dual Access Animal Workstation (110-130 VAC, 50 / 60 Hz, 1Ø)

External Dimensions (W x D x H): 1340 x 762 x 1961 mm min height, 1340 x 762 x 2245 mm max height

Internal Work Area (W x D x H): 1100 x 465 x 564 mm

Downflow Velocity: 0.24 m/s (47 fpm)

Pre-Filter: Disposable and non-washable polyester fibres with 85% arrestance / EU3 rated

ULPA Filter Typical Efficiency: >99.999% for particle size between 0.1 to 0.3 microns, per IEST-RP-CC001.3

Sound Emission per EN 12469*: 53 dBA

Fluorescent Lamp Intensity at Zero Ambient: 1725 lux (160 foot candles)

Construction, Main Body: 1.5 mm (0.06") 16 gauge EG Steel with Isocide™ Oven-Baked Epoxy-Polyester Powder Coated Finish

Electrical Rating: 110-130 VAC, 50 / 60 Hz, 1Ø

Power Consumption: 210W

Accessories:

Foldable Side Tray (SS Shelf Kit): VDA-001 5170257, Side Shield: VDA-004 5170562

Feed Hopper: VDA-006 5170594

Dual access animal workstations aim to provide operator comfort and prevent the lab animals from being agitated during cage transfer. This equipment has a legroom on both sides to allow two operators to work while doing cage transfer comfortably. It also has an internal work zone is divided into two by an air curtain that allows transfer of animals from a "dirty" to a "clean" area.

Datasheet
