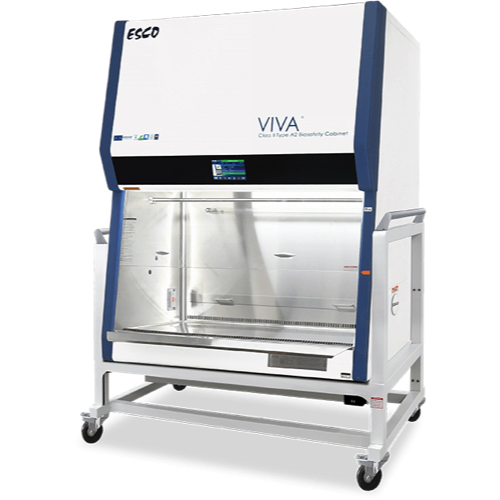

ESCO VA2-5S8 G4 12" Animal Research Workstation (1525 x 625 x 720 mm)

220-240 V 50/60Hz

Norminal: 1.5 meter (5')

External Dimensions: 1790 x 919 x 2025-2533 mm

Internal Work Area: 1525 x 625 x 720 mm

Maximum Sash Opening: 575 mm

Average Airflow Velocity:

Inflow: 0.53 m/s

Downflow: 0.35 m/s

Airflow Volume:

Inflow / Exhaust: 890 m³/h (without ducting)

Downflow: 1128 m³/h

Required exhaust with optional thimble exhaust collar: 1340 m³/h (790 cfm)

ULPA Filter Typical Efficiency: >99.999% at 0.1 to 0.3 micron

Sound Emission: 65 dBA

LED Lamp Intensity: 1000 lux

Cabinet construction

Main body: Electro-galvanized steel with white oven-baked epoxy-polyester Isocide™ antimicrobial powder-coated finish, 1.5 mm (0.06")/16 gauge thick

Workzone: Stainless steel type 304 with no.4 finish, 1.5 mm (0.06") / 16 gauge thick

Net Weight: 381 kg (including stand)

Datasheet
