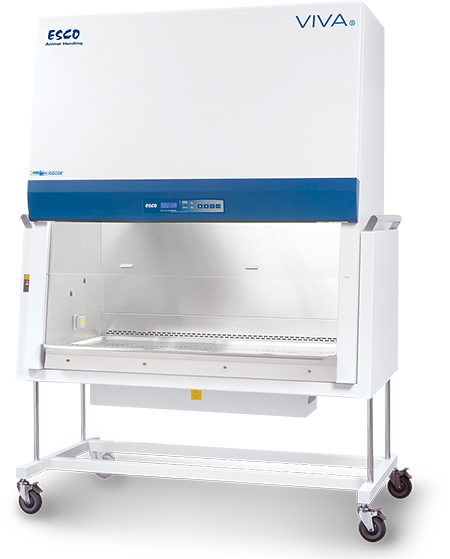

ESCO VA2-4A1-E Universal Animal Workstations (220-240 VAC, 50/60 Hz)

Nominal Size: 1.2 meter (4')

External Dimensions (W x D x H): 1423 x 815 x 1510 mm

Maximum External Dimensions with Support Stand (W x D x H): 1585 x 852 x 2235 mm 0")

Internal Work Area (W x D x H): 1270 x 623 x 680 mm

Average Airflow Velocity:

Inflow: 0.45 m/s (90 fpm)

Downflow: 0.35 m/s (70 fpm)

Airflow Volume:

Inflow: 625 m³ / h (368 cfm)

Downflow: 959 m³ / h (547 cfm)

Exhaust: 625 m³ / h (368 cfm)

ULPA Filter Typical Efficiency: >99.999% for particle size between 0.1 to 0.3 microns per IEST-RP-CC001.3

Sound Emission*: NSF / ANSI 49: 63 dBA, EN 12469: 60 dBA

Fluorescent Lamp Intensity: > 1400 lux (> 130 foot candles)

Cabinet Construction: 1.5 mm (16 gauge) electrogalvanized steel with Isocide white oven-baked epoxy power coating

Net Weight Cabinet including stand: 406 Kg (895 lbs)

Electrical*: 220-240 VAC, 50/60 Hz, 1Ph, 5.5 amps

*Noise as measured in an open field/ anechoic chamber

Universal animal workstations employ two independently balanced ULPA filtration modules to protect animals inside the enclosure from exposure to airborne particulates/ambient contamination, as well as, the operator from exposure to allergens and other potentially hazardous materials. It has an ergonomically sloped front design and integrated carbon filters to remove emitted odors which provides operator protection during operations.
