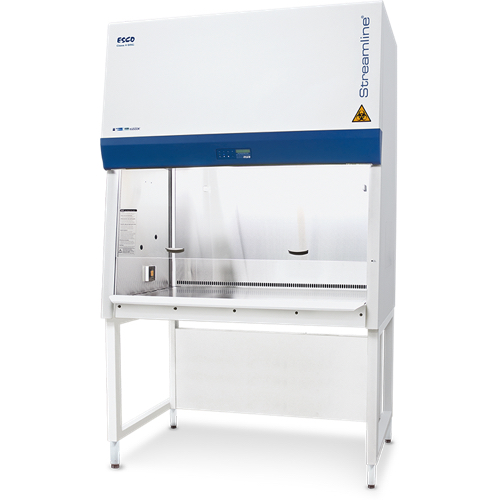

ESCO SC2-4S1 Biological Safety Cabinet (308W, 7A)

External Dimension (W x D x H): 1340 x 810 x 1400 mm

Gross Internal Dimension (W x D x H): 1220 x 580 x 670 mm

Tested Opening: 175 mm (7”)

Airflow Velocity:

Inflow: 0.45 m/s

Downflow: 0.30 m/s

Airflow Volume:

Inflow: 346 cmh

Downflow: 764 cmh

Exhaust: 346 cmh

Filter Efficiency (%):

>99.999% at 0.1 to 0.3 micron, ULPA as per IEST-RP-CC001.3 USA

>99.999% at MPPS, H14 as per EN 1822 EU

Sound Emission (IEST-RP-CC002.2):

NSF: 60 dBA

EN: 57 dBA

Fluorescent Lamp Intensity: 1118 lux

Cabinet Construction:

Main Body: 1.2 mm (0.05”) / 18 gauge EG Steel with IsocideTM Oven-Baked Epoxy-Polyester Powder Coating

Workzone: Single-piece work tray, 1.5 mm (0.06”) / 16 gauge, SS304, with stainless steel side wall

Electrical:

Maximum Power / Current Consumption: 360 W / 2 A

Nominal Power Consumption: 308 W

Outlet Amp Fuse: 5 A

Full Load Amps: 7 A

BTU/Hr: 874

Net Weight: 230 kg
