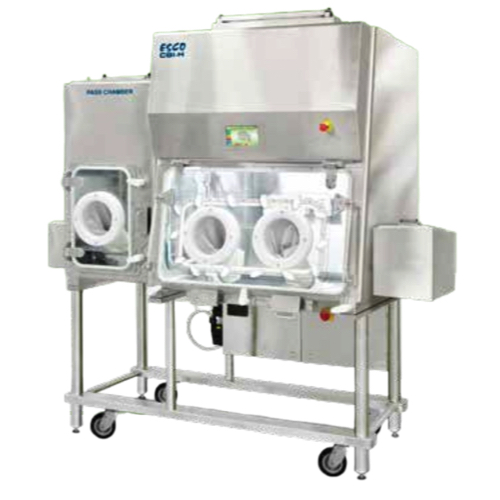

ESCO CBI-H-4G8 Containment Barrier Isolator - Hybrid (2 m)

Main Chamber Nominal Size (Width): 2 meters

Working Chamber Dimensions - Min (W x D x H): 2 m x 0.55 m x 0.77 m

Working Chamber Dimensions - Max (W x D x H): 2 m x 0.63 m x 0.84 m

External Dimension (with one Pass Chamber) (W x D x H):

With Adjustable Base Stand (Min): 2.62 m x 0.92 m x 2.55 m

With Adjustable Base Stand (Max): 2.62 m x 0.92 m x 2.85 m

External Dimension of Pass-through Chamber (W x D x H): 0.62 m x 0.66 m x 0.58 m

Glove Port Height (Min): 1200 mm

Glove Port Height (Max): 1500 mm

Chamber Environment: ISO Class 5 all chambers (Grade A)

Airflow:

Class III: Turbulent

Class I: Unidirectional (Positive)

Pre-filter:

Process Chamber: G4, polyester media

Pass-through Chamber: G4, polyester media

Filter Type - Chamber Inlet: HEPA (H14) Filter with Integral Mesh Guard and Gasket Seal

Filter Efficiency - Chamber Inlet: 99.995% MPPS

Filter Type - Chamber Exhaust - 1st Stage: HEPA (H14) Filter with Integral Mesh Guard and Gasket Seal

Filter Type - Chamber Exhaust - 2nd Stage: HEPA (H14) Filter with Integral Mesh Guard and Gasket Seal or Carbon Filter

Filter Efficiency - Chamber Exhaust - 1st Stage: 99.995% MPPS

Filter Efficiency - Chamber Exhaust - 2nd Stage: 99.995% MPPS

Lighting Level: ≥ 500 Lux (6000 K)

Sound Level: ≤ 80 dBA

Isolator Construction:

Chamber: SS 316L

Service Housing: SS 304

Support Frame: SS 304

Isolator Finish:

Chamber Internal: ≤ 0.4 Ra

Chamber External: ≤ 0.6 Ra

Service Housing External: ≤ 0.6 Ra

Support Frame: ≤ 1.0 Ra

Electrical Requirements: 220-240 VAC, 50/60 Hz, 1Ø

Compressed Air Requirement (by Client) If no on-board compressor: 2 Bar-g Pressure at 5 L/sec ✔

Exhaust Duct Requirements (by Client) unless Integral Catalytic Converter is Included: 10” Duct from Isolator to Outside

Net Weight: TBD
