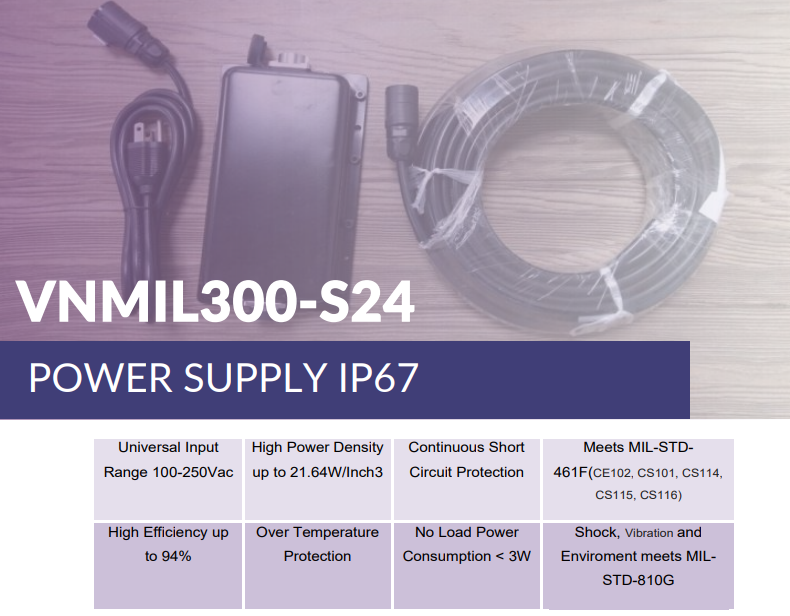

EMIN VNMIL300-S24 Power Supply IP67

- AC Input Voltage Range: 100-250 Vac

- AC Input Frequency: 47-63 Hz

- Input Current (max): 3A max @ 115Vac; 1.5A max @240Vac

- No Load Power Consumption: 3 W

- Inrush Current: Cold start @25°C 30A max. @240Vac

- Leakage Current: 3.5 mA max

- Output Voltage: 24 Vdc

- Output Voltage Accuracy: ±5 %

- Output Current (max): 12.5 A (Natural convection)

- Output Ripple & Noise: 0.01

- Efficiency (max): 0.94

- Short Circuit Protection: Hiccup mode (Auto Recovery)

- Over Voltage Protection: Latch mode

- Isolation: Input to Output = 4000Vac (1minute)

- Hold-up Time: 16ms typ@115Vac

- Temperature Coefficient: ±0.05 %

- Over Load Protection: Yes

- Operating Temperature: -20 to +70 °C

- Storage Temperature: -40 to +85 °C

- Over Temperature Protection: Auto Recovery

- Cooling: Natural Convection-cooled

- Humidity: 98%RH max. non-condensing

- Switching Frequency: 65kHZ ±5% typ. @ Full load

- Waterproof: IP67 (After assembling the connector with power cable and output cable)

- Weight: 2.5kg ± 5% (cables inclusive)
