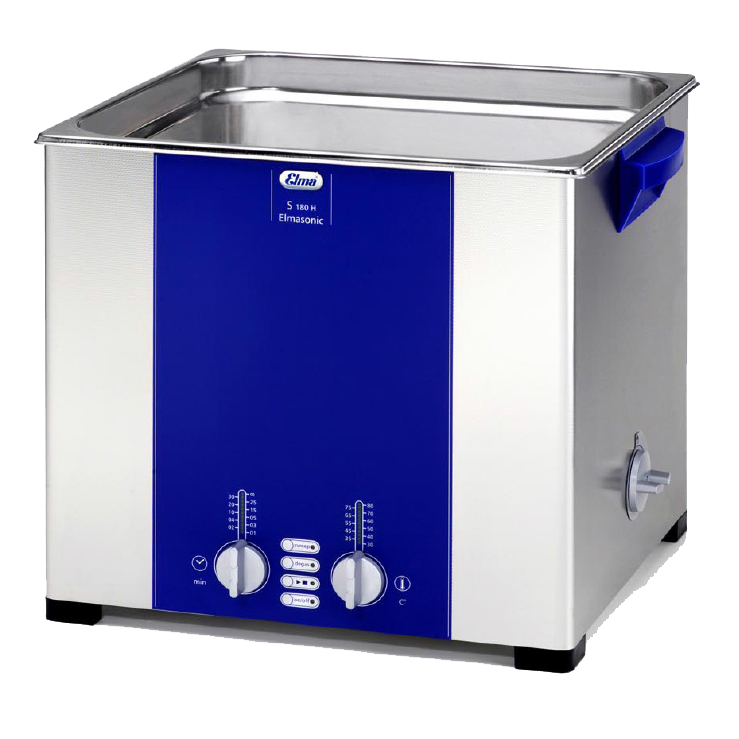

Elma S180H Ultrasonic Cleaners (18L, 200W)

Mains voltage (Vac) 220-240 V

Ultrasonic frequency (kHz) 37

Power consumption total S 180 (W) 200

Power consumption total S 180 H (W) 1000

Ultrasonic power effective (W) 200

Ultrasonic peak performance max.**(W) 800

Heating power (units w. heating) (W) 800

Unit outer dimensions W / D / H (mm) 390 / 340 / 321

Tank internal dimensions W / D / H (mm) 327 / 300 / 200

Basket internal dimensions W / D / H (mm) 280 / 250 / 115

Elma Order Nos.

Elmasonic S 180 (220-240 V) 100 4662

Elmasonic S 180 (115-120 V) 100 7155

Elmasonic S 180 H (220-240 V) 100 2877

Elmasonic S 180 H (115-120 V) 100 7156

Basket stainless steel 100 4275

Cover (plastic) 100 3286

Further accessories on request

Max. filling volume tank (lit. / gal.) 18 / 4.76

Weight (kg) 8.5

Material tank stainless steel

Material casing stainless steel

Drain 3/8"

Protection class IP 20

Option (necessary):

- Cover: 100 3286

- Stainless-steel basket: 100 4275
